MPO Connector with Angled Boot
Gloriole’s MPO connector is available in multiple boots for 45-degree, 90-degree and flexible boot.
Gloriole’s MPO connectors are used in round cable, bare ribbon fiber and oval jacketed cable.
Detail
Specifications
Our MPO connectors allows side-by-side mounting in dense board applications.
Gloriole's MPO connector features removable housing for re-polishing and oval spring for protective distance from bare ribbon fiber.
| Item | MPO Connector (4F, 8F, 12F, 16F, 24F, 32F, 48F) | |
| Mode | Single | Multi |
| Durability | < 0.3dB (50 matings) | |
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um |
| Insertion Loss (Typical) | Standard loss 0.25dB | Standard loss 0.2dB |
| Low Loss 0.1dB | Low Loss 0.1dB | |
| Insertion Loss (Maximum) | Standard loss ≦ 0.75dB | Standard loss ≦ 0.6dB |
| Low Loss ≦ 0.35dB | Low Loss ≦ 0.35dB | |
| Return Loss | APC ≧ 55dB | None |
| Operating Temp. (℃) | -40℃ ~ +75℃ | |
| Storage Temp. (℃) | -40℃ ~ +85℃ | |
Feature
* Ideal for round, oval and bare ribbon fiber cable assembly
* High performance IL & RL
* Housing can be removed for re-polishing
* Can be un-plugged from adapter with push-pull tab
* Available for 4, 8, 12, 16, 24, 32F and up
* Diversity - Green, Beige, Aqua,Yellow. Black and Magenta are available upon request

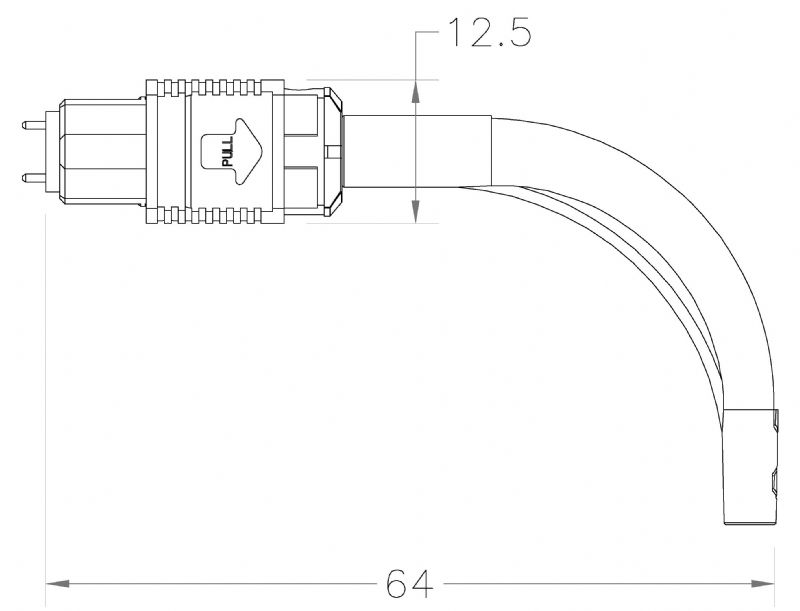

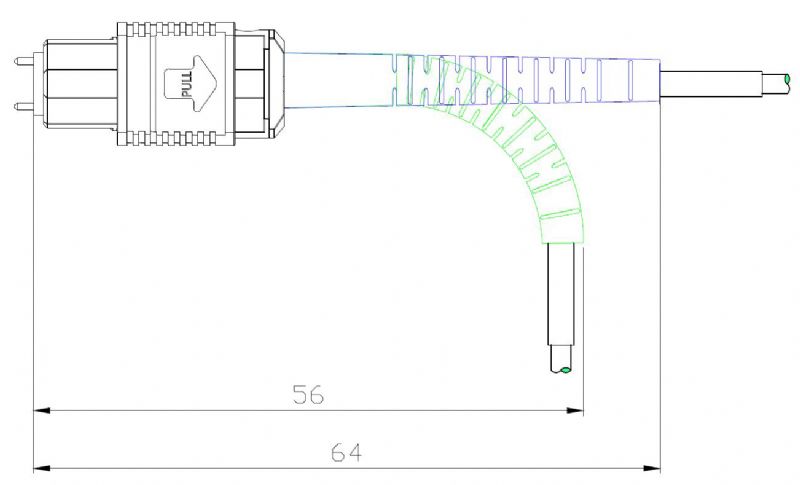

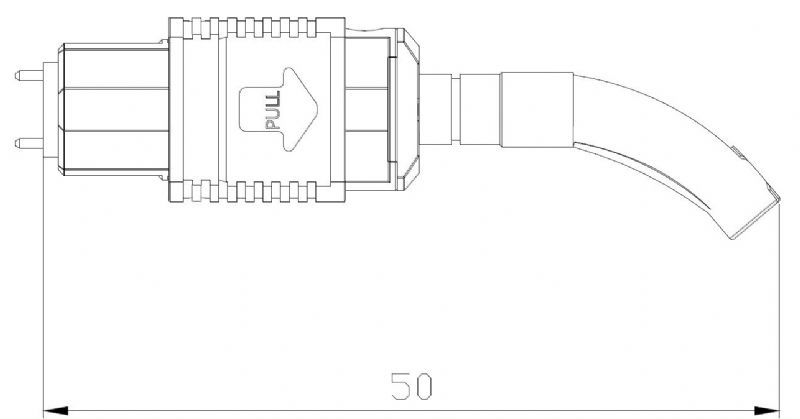

* Available for 45-degree, 90-degree and flexible boot
* IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP® interfaces
* Telcordia GR-1435-CORE Compliant
