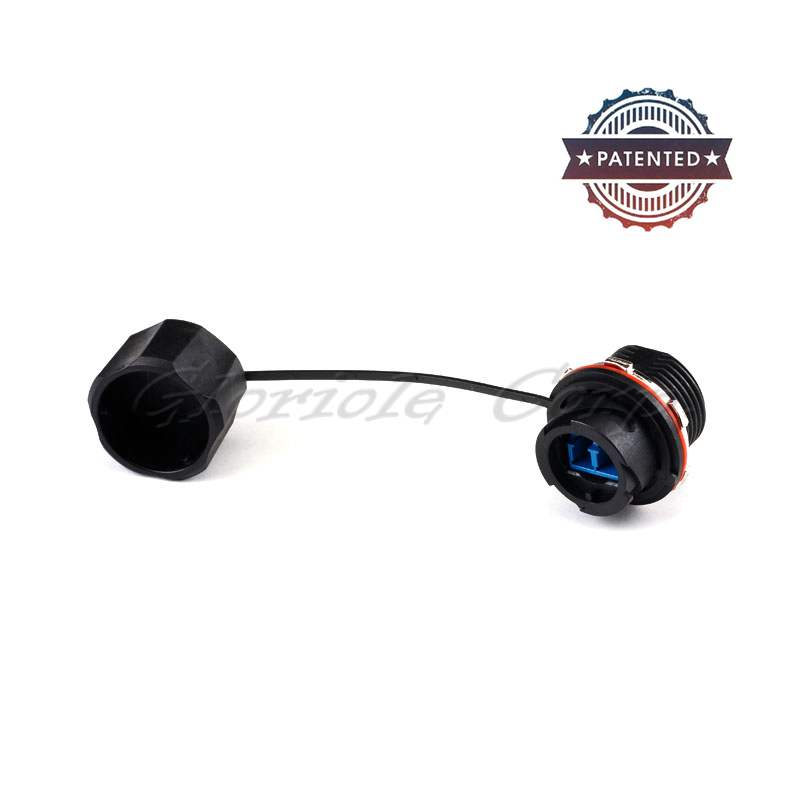

LC-IP Bulkhead Receptacle Type
LC-IP Bulkhead Receptacle Type
Gloriole’s LC-IP Connector is designed to provide an outdoor LC-based sealed connection to a board mounted SFP within a sealed enclosure.
Detail
Specifications
The system is designed to provide IP68 dust and water protection when connector and receptacle are mated or with dust caps installed.
Plug cap includes integrated pulling eye for easy installation.
Gloriole’s LC-IP assemblies are exceptionally suited for WiMax, LTE, wireless, wireless backhaul and base station applications.
Benefits
• Blind mate and scoop proof interface
• Mates to standard LC simplex or duplex assemblies
• Easily installs without special tooling
• No internal jumper needed
• Direct connect to active device (SFP, SFP+, RJ)
| Item | LC-IP Bulkhead Receptacle Type | |
| Mode Type | Single Mode | Multi Mode |
| Insertion Loss | P Grade ≦ 0.15dB , A Grade ≦ 0.3dB | |
| Return Loss | ≧ 50dB(PC), 55dB(UPC), 60dB(APC) | X |
| Durability | < 0.2dB change , 500 mating | |
| IP Rating | IP68 | |
| Operation Temp.(℃) | -40℃ ~ +85℃ | |
Feature
- Patented product
- Bird proof and rodent resistant
- IP67 water and dust protection
- Available with singlemode or multimode fiber
- 500 minimum mating cycles
- Operating temperature: -40° to 85°C
- RoHS compliant
- Bayonet mating style
