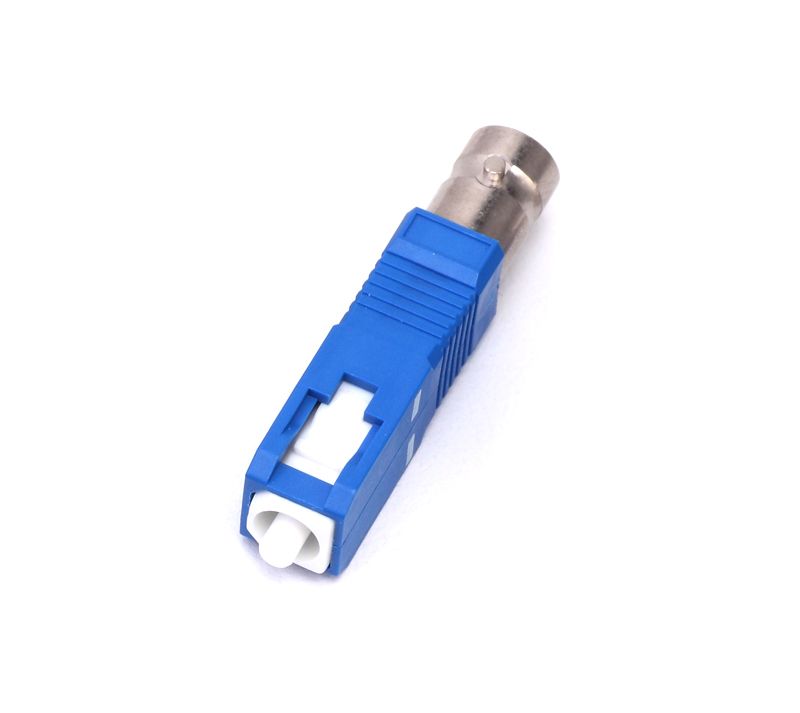

Hybrid SC(Male)-ST(Female)
Hybrid SC(Male)-ST(Female)
Gloriole manufactures hybrid adapter/attenuator for conversion of LC with either SC or FC connector/ adapter.
This product can be applied to adjust the input power level of signal in optical communications, E/O converter and for test of the linear or dynamic range of optical power meter.
Detail
Specifications
| Item | Hybrid SC(Male)-ST(Female) | ||||
| Mode | Single | Multi | |||
| Wavelength | 1310nm and 1550nm | 850nm and 1300nm | |||
| 1310nm or 1550nm | 850nm or 1300nm | ||||
| Range(dB) | 0~30 | 0~20 | |||
| Insertion Loss | 0dB | ≦ 0.5dB | ≦ 0.5dB | ||
| < 10dB | Super±0.5dB ; Ultra±0.75dB | ±1dB | |||
| ≧ 10dB | Super±10% ; Ultra±15% | ±15% | |||
| Reflectance | PC | ≧ 45dB | X | ||
| UPC | ≧ 50dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
| Storage Temp. (℃) | -40℃ ~ +85℃ | ||||
Feature
* Easy installation - compact design fits into existing connectors or patch panels
* Consistent performance - precise attenuation value and high return loss
* Diversity - various connectors for option
* High Stability and High Reliability
* Flawless end face
* Telcordia GR-910-CORE and RoHS Compliant
