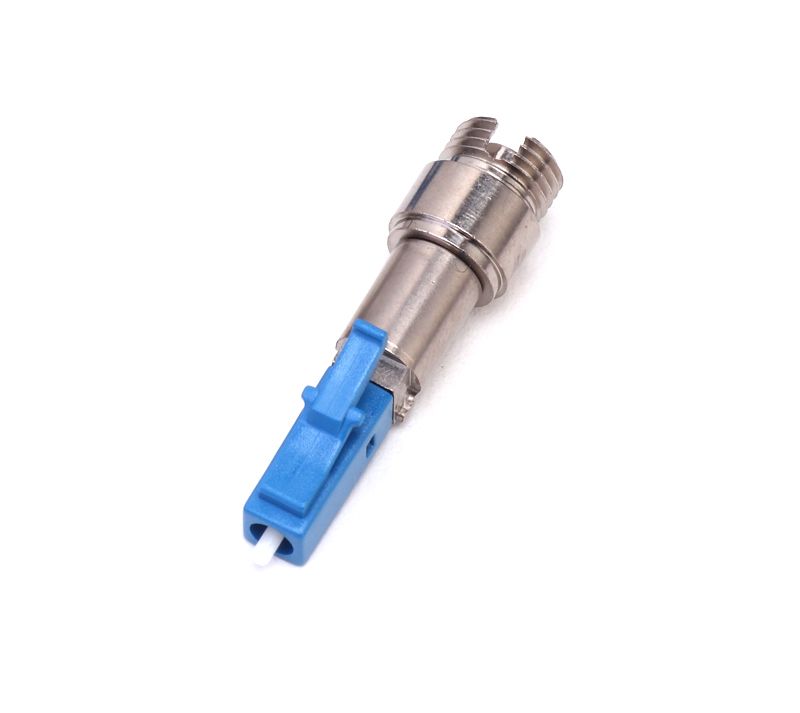

Hybrid LC(Male)-FC(Female)
Gloriole manufactures hybrid adapter/attenuator for conversion of LC with either SC or FC connector/ adapter.
This product can be applied to adjust the input power level of signal in optical communications, E/O converter and for test of the linear or dynamic range of optical power meter.
Item | Hybrid LC(Male)-FC(Female) | ||||
Mode | Single | Multi | |||
Wavelength | 1310nm and 1550nm | 850nm and 1300nm | |||
1310nm or 1550nm | 850nm or 1300nm | ||||
Range(dB) | 0~30 | 0~20 | |||
Insertion Loss | 0dB | ≦ 0.5dB | ≦ 0.5dB | ||
< 10dB | Super±0.5dB ; Ultra±0.75dB | ±1dB | |||
≧ 10dB | Super±10% ; Ultra±15% | ±15% | |||
Reflectance | PC | ≧ 45dB | X | ||
UPC | ≧ 50dB | ||||
Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
Storage Temp. (℃) | -40℃ ~ +85℃ |
