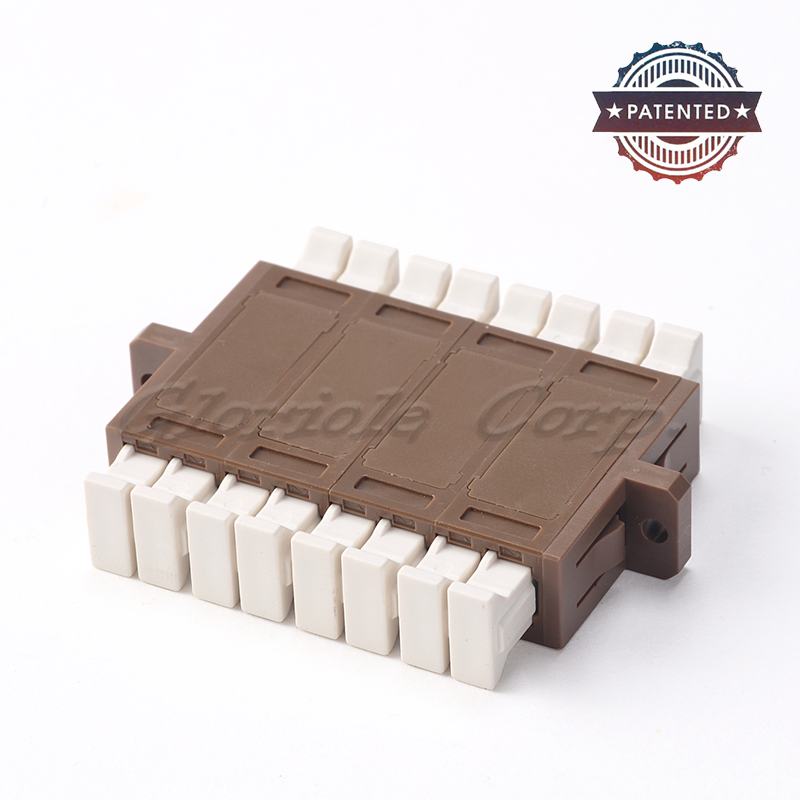

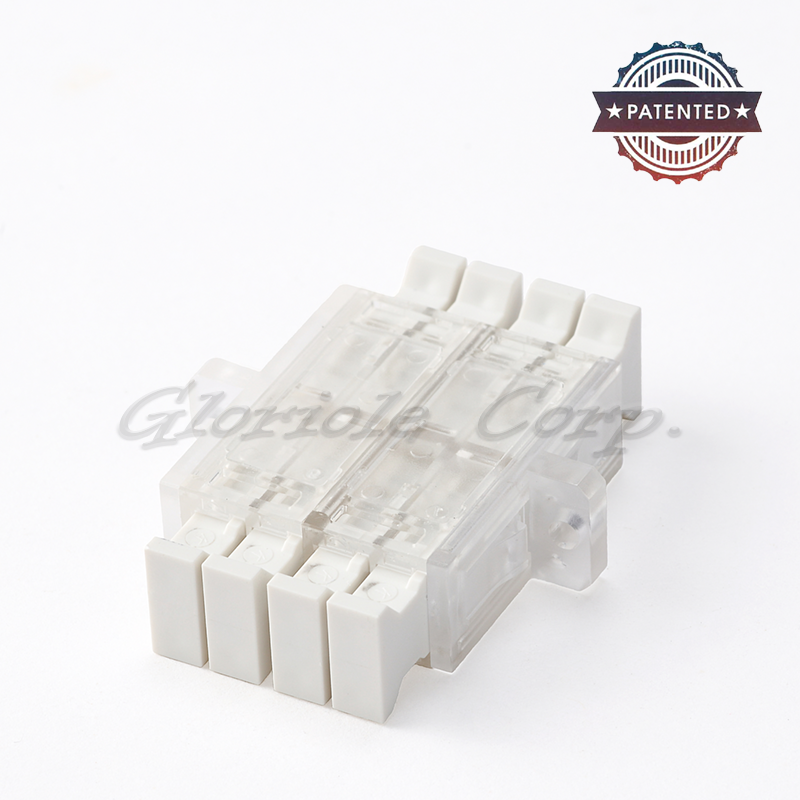

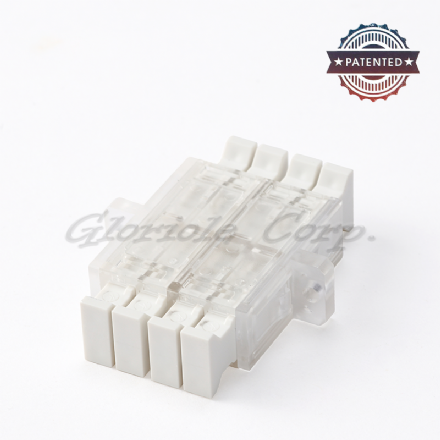

MU Stackable Adapter
Gloriole’s MU stackable adapter is an unique design.
MU stackable adapter can stack any ports in high density application.
MU stackable adapter is straight type for SM, MM and APC versions.
Detail
Specifications
Gloriole's MU connectors are available in 0.9mm (standard type, MU-J type and kevlar cable type), 2.0mm and 3.0mm.
Gloriole's MU products features high precision alignment for SM/PC, SM/APC and MM/PC versions.
| Item | MU Stackable Adapter | |
| Housing Color | APC=Green,PC=Brown & Blue | |
| Main Body Material | UL-Rated Plastic | |
| Sleeve | Zirconia | |
| Typical Insertion Loss(dB) | ≦ 0.15dB | |
| Durability | < 0.2dB change, 500mating | |
| Operating Temp. | -40℃ ~ +75℃ | |
| Storage Temp. | -40℃ ~ +85℃ | |
Feature
- Patented product
- Ultra Flexible
- Stackable multiple rows and columns
- High Density
- Variety Colors
- New One Piece Design, stronger and stable
