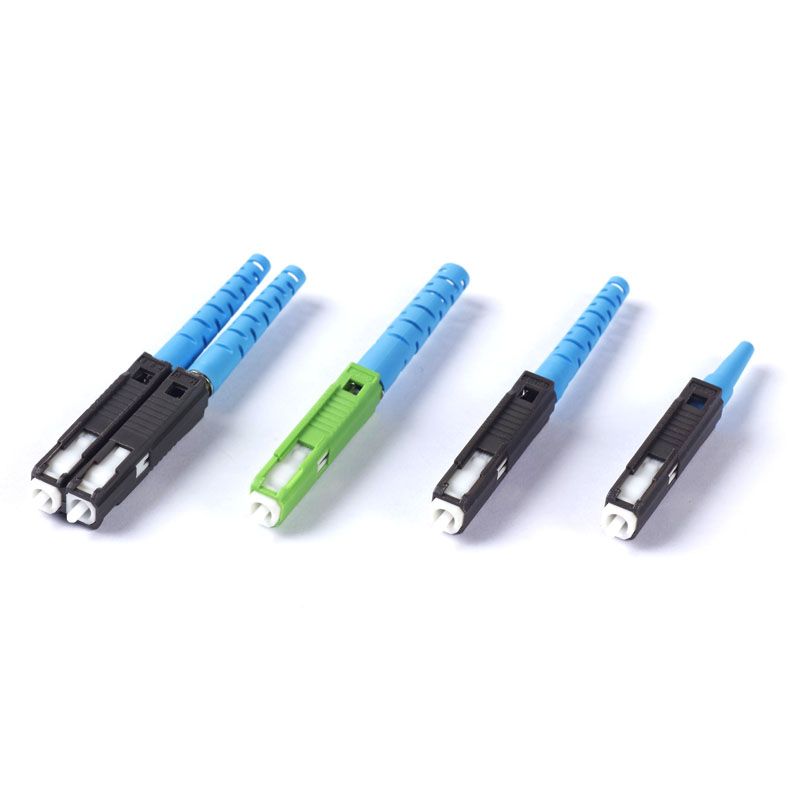

MU Connector
Gloriole’s MU connector and adapter transfers from NTT-AT.
MU is Small Form Factor (SFF) for half the size of SC connector.
Gloriole’s MU products features high precision alignment for SM/PC, SM/APC and MM/PC versions.
Detail
Specifications

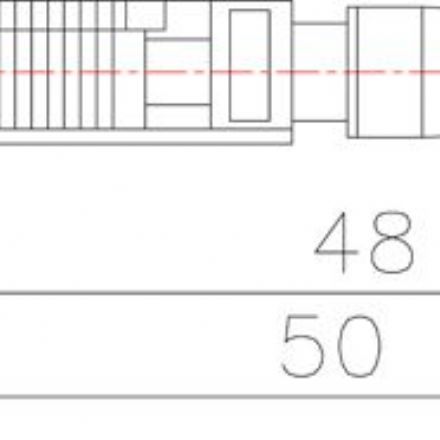

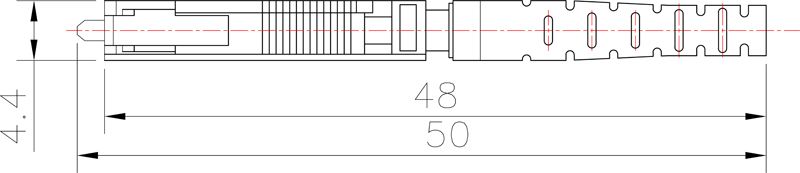

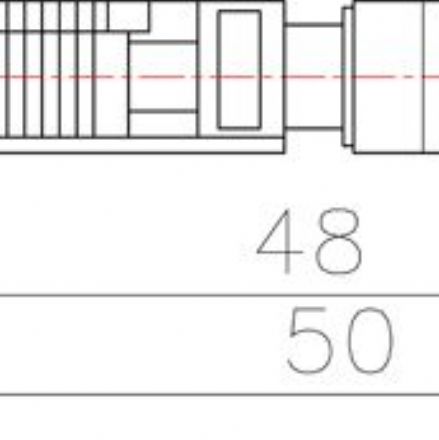

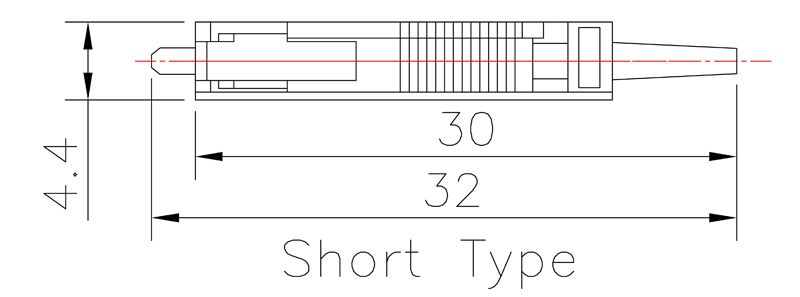

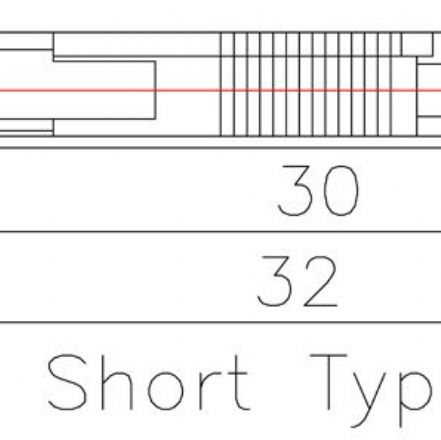

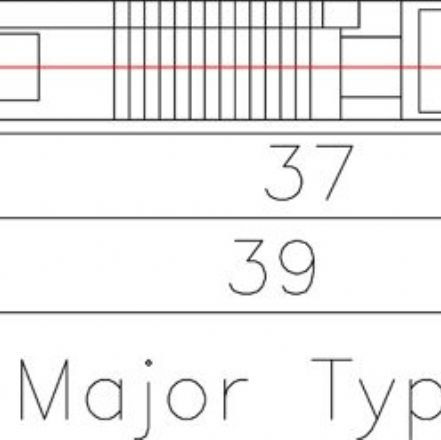

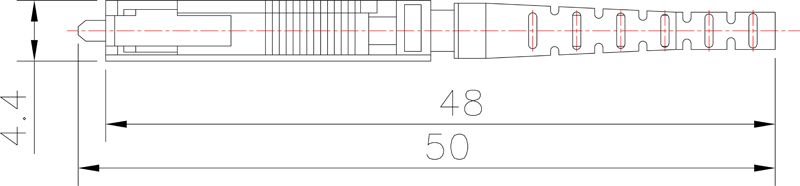

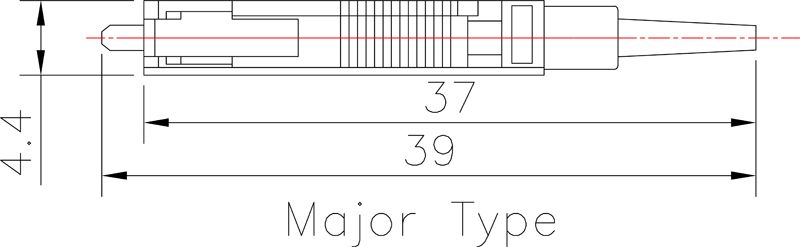

Gloriole's MU connectors are available in 0.9mm (standard type, MU-J type and kevlar cable type), 2.0mm and 3.0mm.
| Item | MU Connector (0.9mm,2.0mm,3.0mm) | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
*Small form factor
*High precision alignment
*Low Insertion Loss and High Return Loss
*Easy installation
*Compact design and High-density package
*900μm, 2.0mm and 3.0mm versions
*Simplex and Duplex connector housing available
*Telcordia GR-326-CORE, NTT & JIS compliant
