LC Loopbck

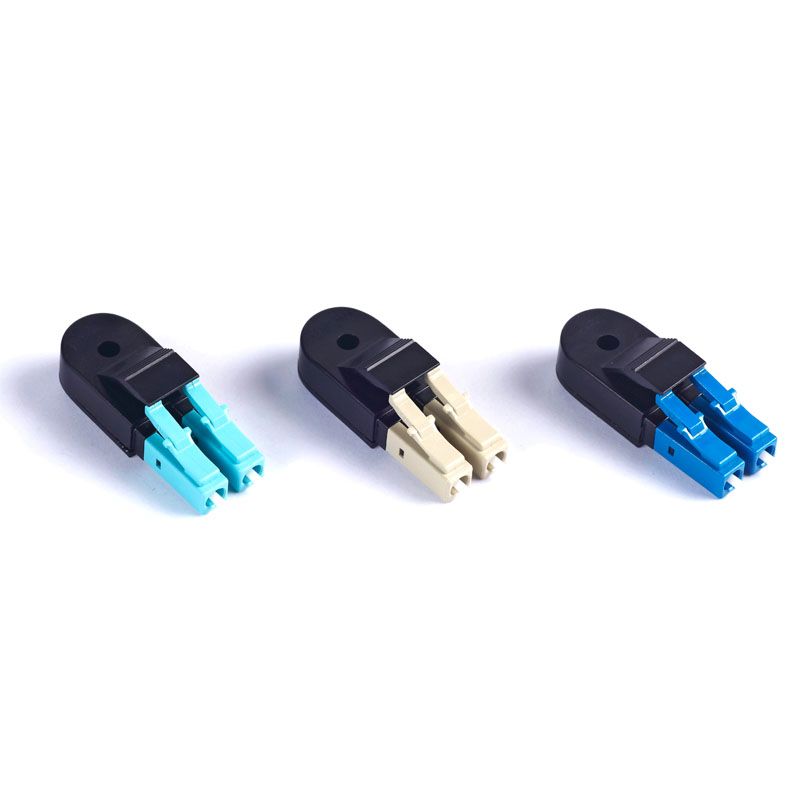

Gloriole’s LC Loopback adapter/attenuator are available in SM, MM and APC versions.
The applications are manufacturing test, quality control and field trouble shooting.

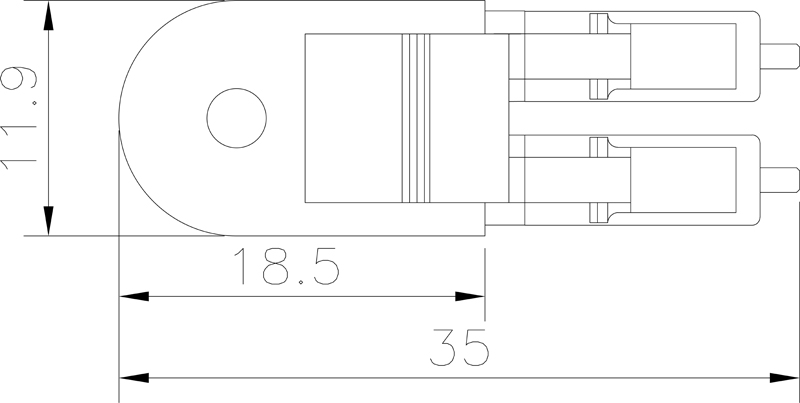

Gloriole’s LC Loopback features small size to save space and hang hole included, easy to carry.

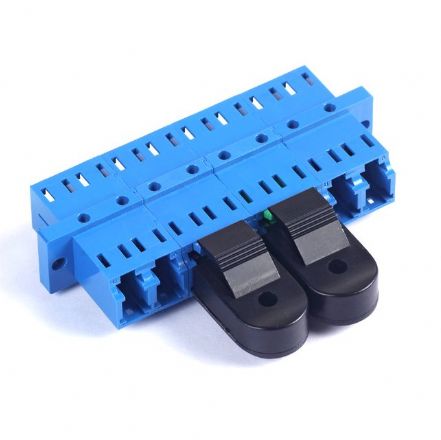

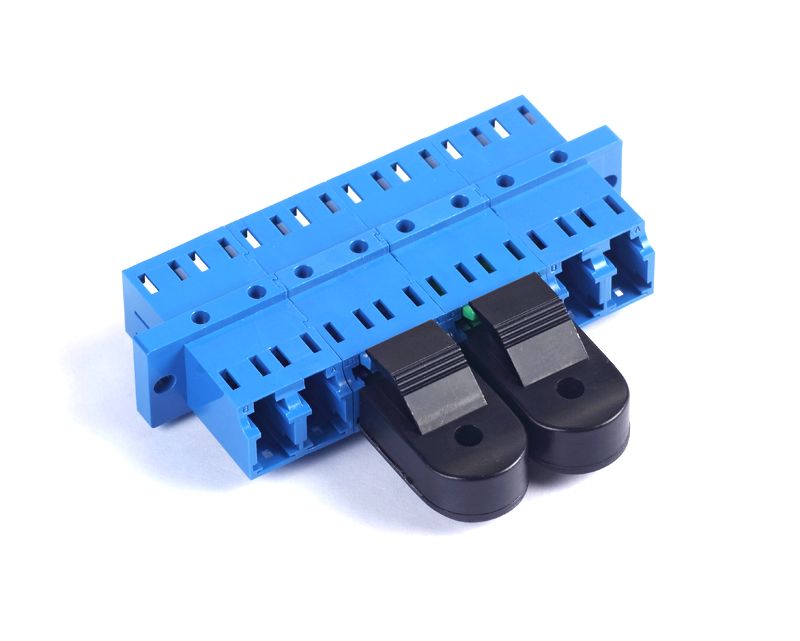

LC Loopback is able to insert into above 2-port LC adapter.
Detail
Specifications
| Item | LC Loopback | ||||
| Mode | Single | Multi | |||
| Wavelength | 1310nm and 1550nm | 850nm for 1~6dB | |||
| 1310nm or 1550nm | 850nm / 1300nm for 0dB | ||||
| Range(dB) | 0~25 | 0~6 | |||
| Insertion Loss | 0dB | ≦ 1dB | |||
| 1~10dB | ±1dB | ≦ 6dB ±1dB | |||
| 11~25dB | ±15% | X | |||
| Reflectance | PC | ≧ 45dB | X | ||
| UPC | ≧ 50dB | ||||
| APC | Super ≧ 60dB ; Ultra ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
| Storage Temp. (℃) | -40℃ ~ +85℃ | ||||
Feature
* Precise attenuation value
* Excellent reflectance
* Flawless end face
* Compact design
