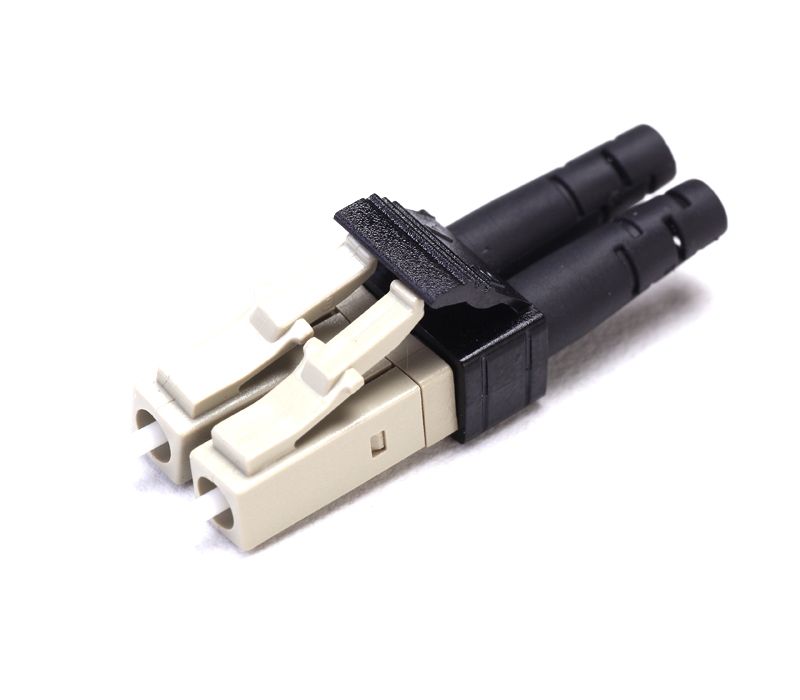

Mini LC Connector
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Gloriole’s mini LC connector design is compatible with mini SFP + transceivers.
Detail
Specifications
LC is Small Form Factor (SFF) for half the size of SC connector.
The mini LC connector is available in 5.25mm pitch (Duplex Only) and for SM (PC & APC) and MM.
| Item | Mini LC Connector | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature

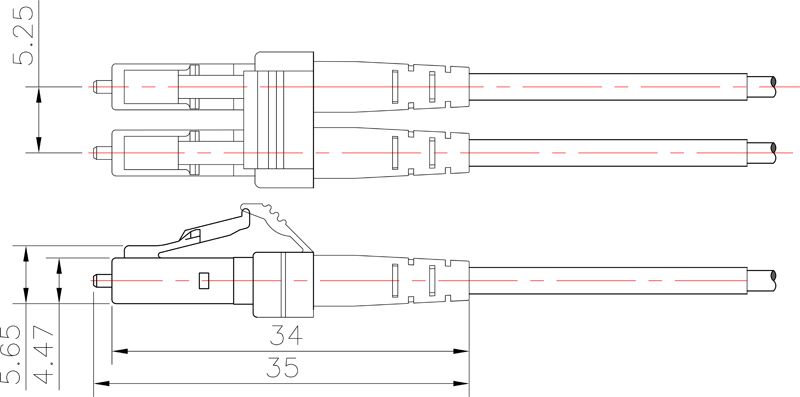

Mini LC Connector Pitch at 5.25mm(Duplex Only)
This connector design is compatible with mini SFP + transceivers
Increases the density
36mm in length from ferrule tip to boot end
Provides space saving in the network and FTTH application
