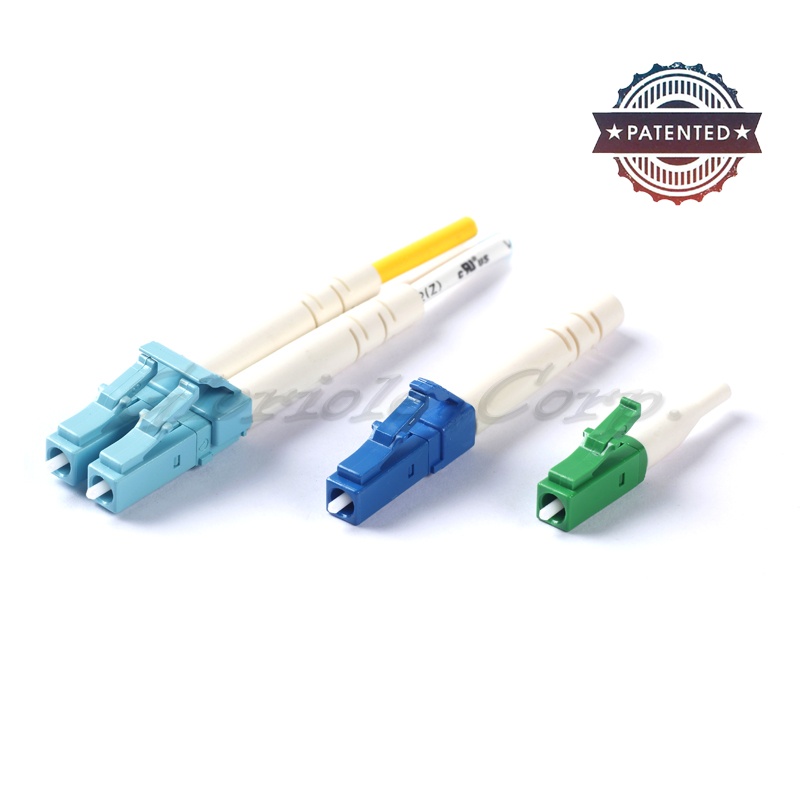

LC Connector
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Our LC standard connector is available in 0.9mm, 2.0mm, 3.0mm and simplex, duplex for SM (PC & APC) and MM.
Gloriole’s LC standard connector benefits a compact design.
Detail
Specifications
Gloriole’s LC standard connector can be removed easily from LC adapter by using LC pull-push tab.
LC is Small Form Factor (SFF) for half the size of standard connector.
LC pull-push tab is available in LC standard Connector and LC Unibody connector.
| Item | LC Connector (0.9mm,2.0mm,3.0mm) | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
* Patented product
* Small Form Factor (SFF) connector
* Simplex and Duplex for option
* SM/PC, SM/APC and MM/PC versions

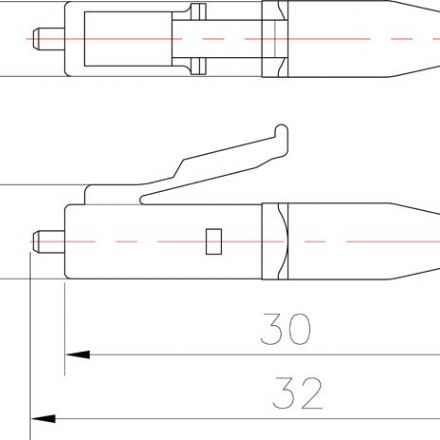

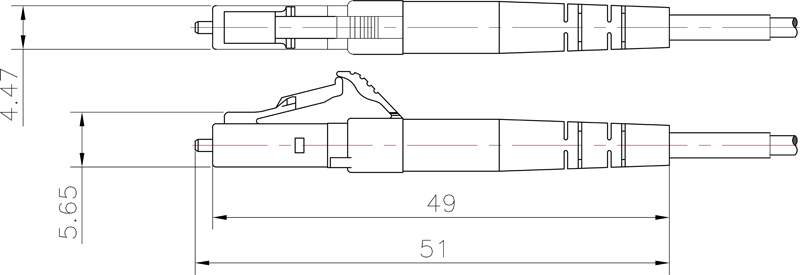

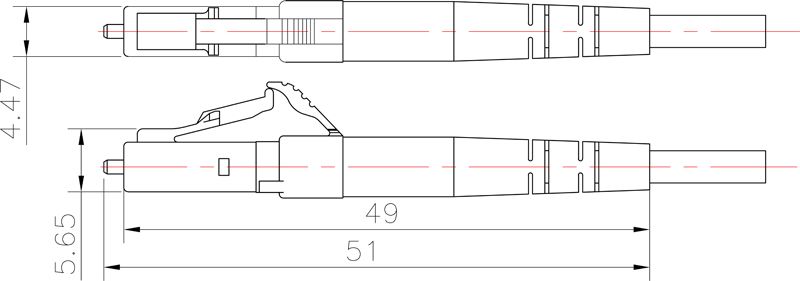

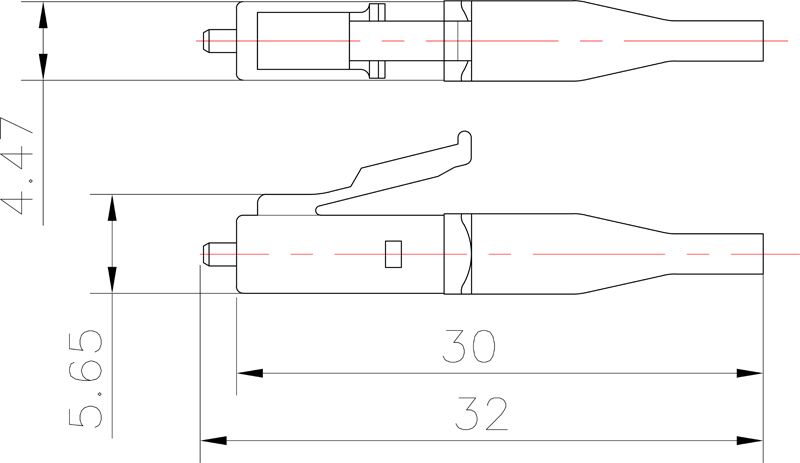

* 900μm, 2.0mm and 3.0mm versions
* Multiple boot color for option
* Available for 45-degree, 90-degree and flexible boot
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
