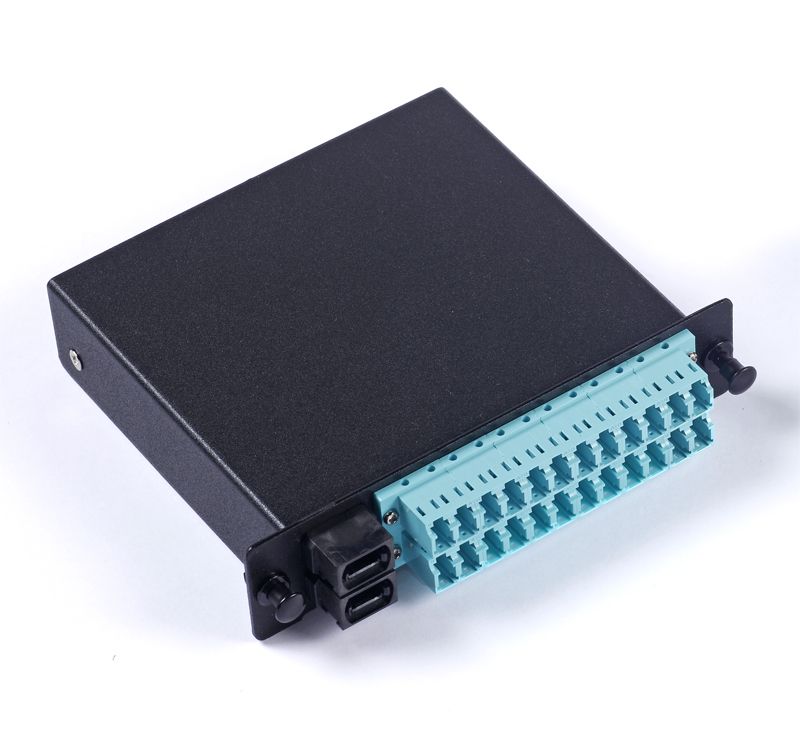

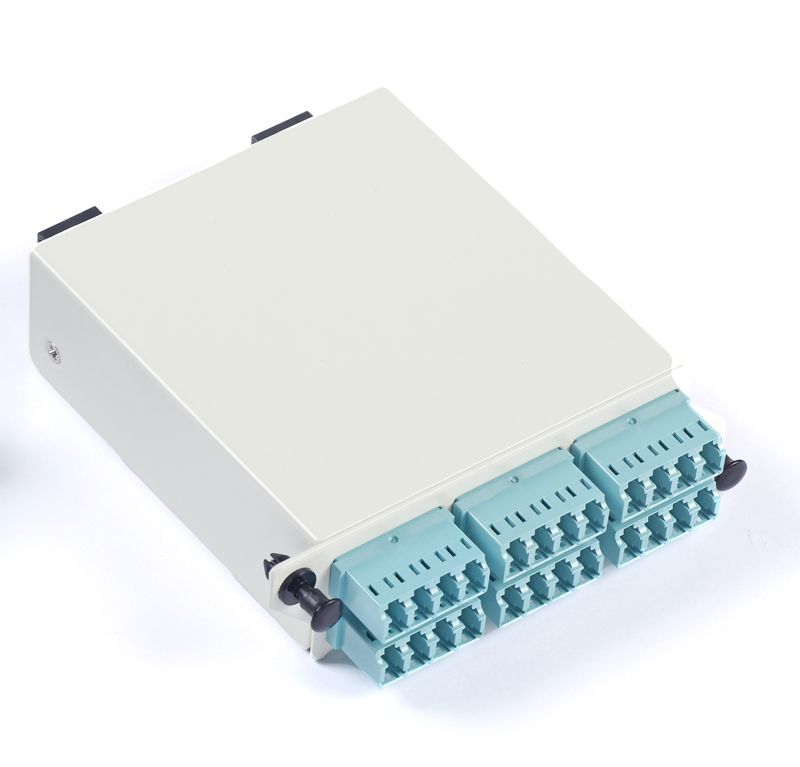

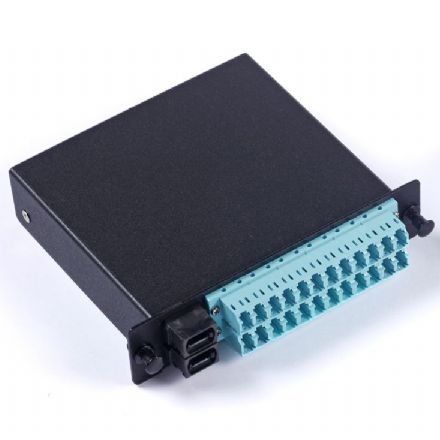

MPO - LC LGX Cassette
The primary function of MPO-LC cassette is to separate multi-fiber connectors into simplex connectors for connection to adjacent network elements. These products provide a fast, reliable, and efficient way to deploy up to 24 LC fiber ports in a single cassette. These cassettes can be mounted in 19” rack mount.
Detail
Specifications
| Item | MPO-LC LGX Cassette | |||
| Connector Type | MPO | LC | ||
| End Face Type | SM APC | MM PC | SM UPC | MM PC |
| Insertion Loss | ≦ 0.75dB | ≦ 0.6dB | ≦ 0.3dB | ≦ 0.3dB |
| Low Insertion Loss | ≦ 0.35dB | ≦ 0.35dB | ≦ 0.2dB | ≦ 0.2dB |
| Return Loss | ≧ 55dB | ≧ 20dB | ≧ 55dB | ≧ 20dB |
Feature
* High-density and small design
* Easy and fast installation
* Plug-and-Play function
* Field connections with guaranteed quality and simplified fiber routing
* Modular system management, easy reconfiguration for upgrading and changing
* Customized fiber polarity
* 100% in-house tested
