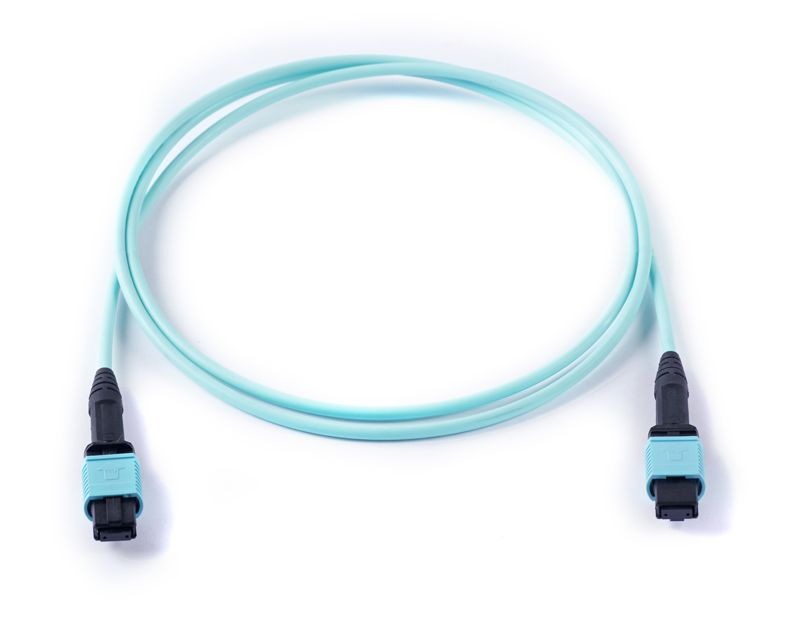

MPO Patchcord
MPO patchcord is push-on and pull-off latching for high density application (8F, 12F and 24F). Our MPO patchcord is available in SM and MM for 10G, 40G and 100G.
Detail
Specifications
Gloriole uses precise MT ferrule and compact MPO connector to produce MPO patchcord.
100% in-house tested with high quality. Gloriole's MPO patchcord is compatible with MTP.
| Item | MPO Patchcord (4F, 8F, 12F, 16F, 24F, 32F, 48F) | |
| Mode | Single | Multi |
| Durability (50 matings) | < 0.3dB | |
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um |
| Insertion Loss (Typical) | Standard loss 0.25dB | Standard loss 0.2dB |
| Low Loss 0.1dB | Low Loss 0.1dB | |
| Insertion Loss (Maximum) | Standard loss ≦ 0.75dB | Standard loss ≦ 0.6dB |
| Low Loss ≦ 0.35dB | Low Loss ≦ 0.35dB | |
| Return Loss | APC ≧ 55dB | None |
| Operating Temp. (℃) | -40℃ ~ +75℃ | |
| Storage Temp. (℃) | -40℃ ~ +85℃ | |
Feature
* High density application
* Compliant with TIA/EIA 604-5 and IEC 61754-7 industry standards
* Push-on / Pull-off latching
* Available for 4, 8, 12, 16, 24, 32F and up
* Available in bare ribbon fiber, oval jacket, round cable and fan-out cord
* Available in SM and MM (OM1, OM2, OM3 and OM4)
* QSFP + AOC application
* 100% in-house tested
