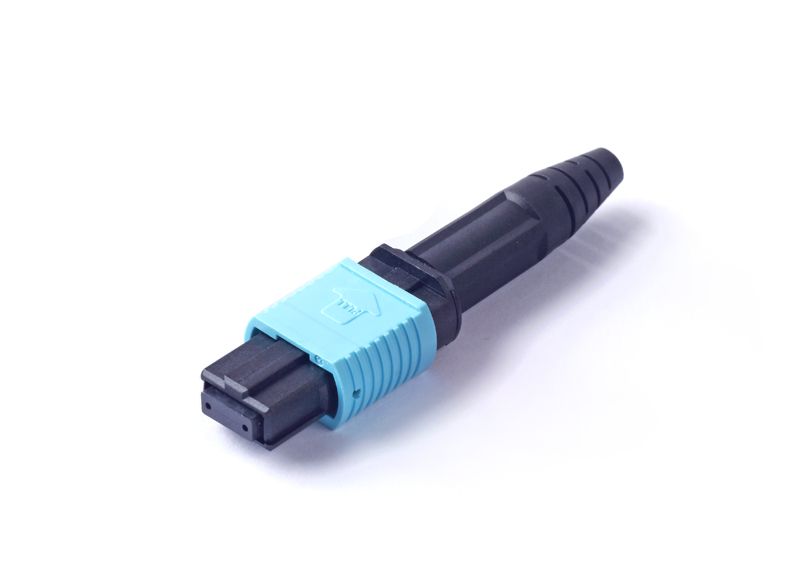

MPO Connector Round Cable
Gloriole’s MPO connectors are used in round cable, bare ribbon fiber and oval jacketed cable.
In the high dense situation, Gloriole’s MPO connector can be plugged and unplugged from adapter by using MPO push-pull tab.

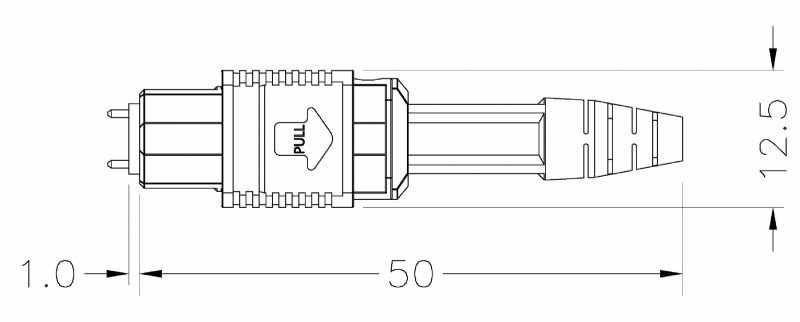

Detail
Specifications
Our MPO connectors allows side-by-side mounting in dense board applications.
Gloriole's MPO connector features removable housing for re-polishing and oval spring for protective distance from bare ribbon fiber.
| Item | MPO Connector (4F, 8F, 12F, 16F, 24F, 32F, 48F) | |
| Mode | Single | Multi |
| Durability | < 0.3dB (50 matings) | |
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um |
| Insertion Loss (Typical) | Standard loss 0.25dB | Standard loss 0.2dB |
| Low Loss 0.1dB | Low Loss 0.1dB | |
| Insertion Loss (Maximum) | Standard loss ≦ 0.75dB | Standard loss ≦ 0.6dB |
| Low Loss ≦ 0.35dB | Low Loss ≦ 0.35dB | |
| Return Loss | APC ≧ 55dB | None |
| Operating Temp. (℃) | -40℃ ~ +75℃ | |
| Storage Temp. (℃) | -40℃ ~ +85℃ | |
Feature
* Available for round, oval and bare ribbon fiber cable assembly
* High performance IL & RL
* Housing can be removed for re-polishing
* Can be un-plugged from adapter with push-pull tab
* Available for 4, 8, 12, 16, 24, 32F and up
* Diversity - Green, Beige, Aqua,Yellow. Black and Magenta are available upon request
* Available for 45-degree, 90-degree and flexible boot
* IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP® interfaces
* Telcordia GR-1435-CORE Compliant
