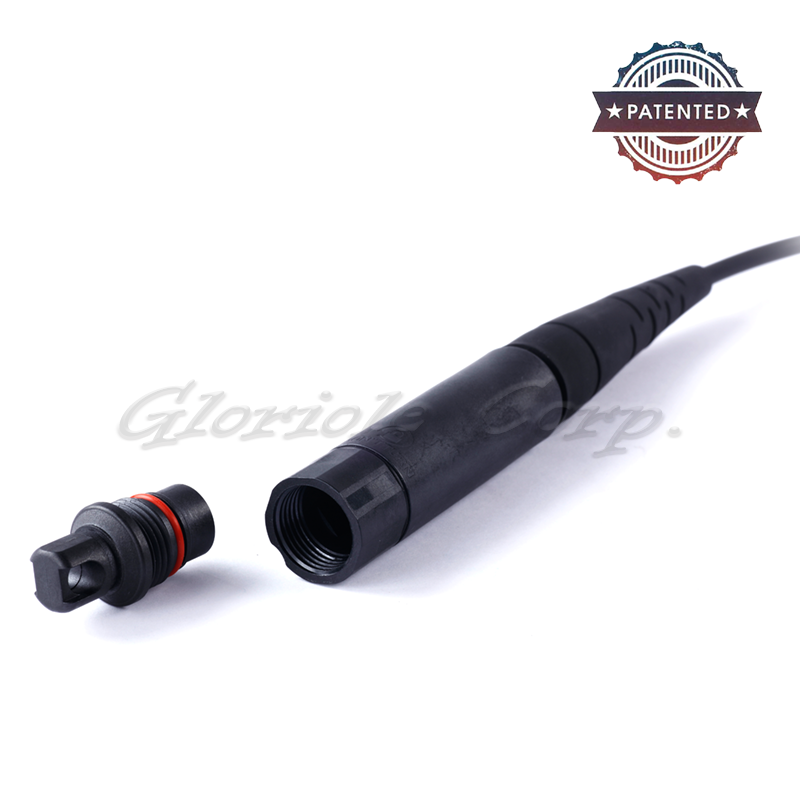

HOptic Connector In-line Receptacle Type
Gloriole H Connectors provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
H Connectors contain H Connector and Receptacle adapter as the basis for coupling inside the adapter/connector housing.
Item | HOptic Connector In-line Receptacle Type | |
Connector Types | SC,LC Duplex | MT |
Insertion Loss | ≦ 0.30dB | ≦ 0.75dB |
Return Loss | ≧ 50dB(PC), 55dB(UPC), 60dB(APC) | ≧ 50dB(APC) |
Operation Temp.(℃) | -40℃ ~ +70℃ | |
Storage Temp.(℃) | -40℃ ~ +85℃ |
