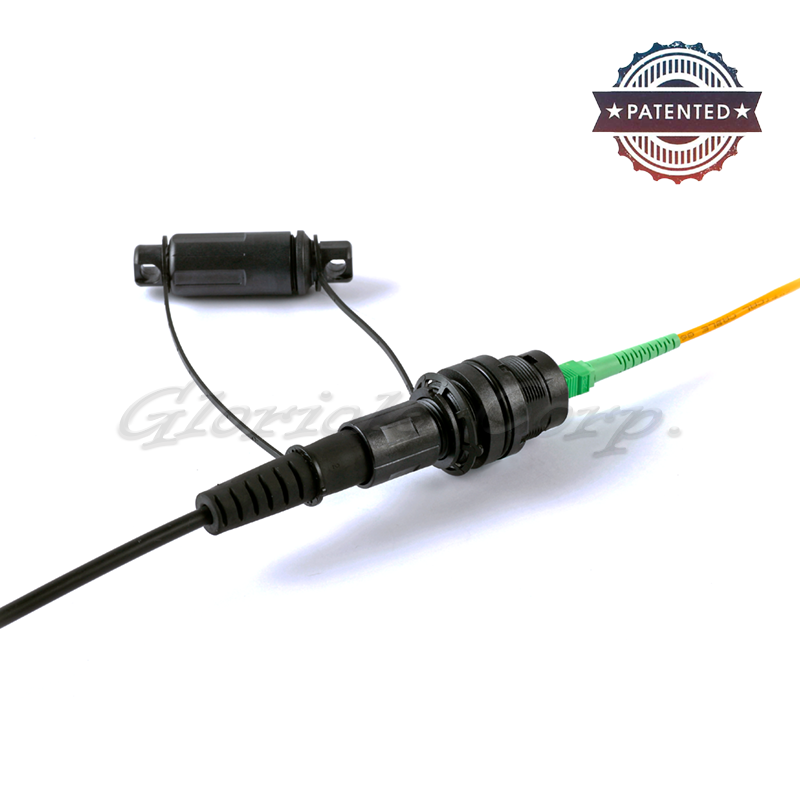

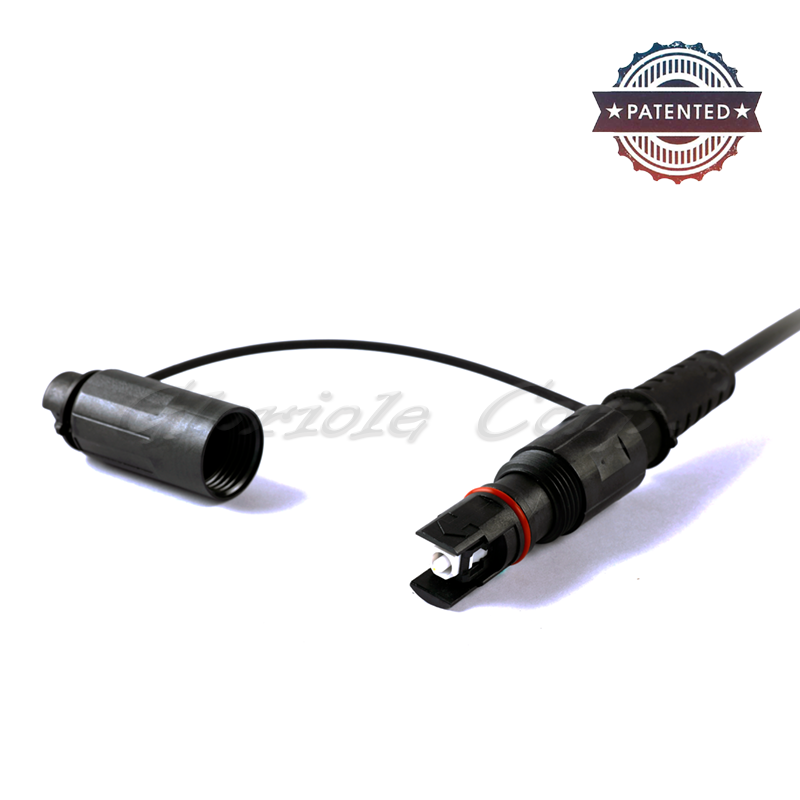

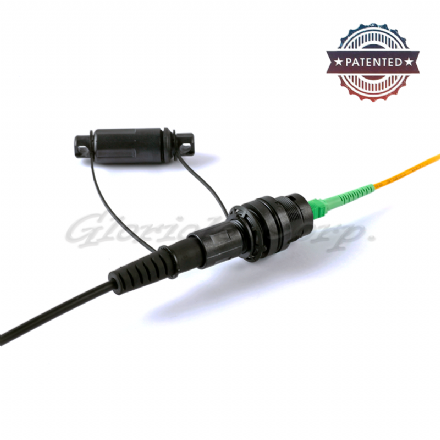

HOptic Connector Plug Type
HOptic Connector Plug Type
Gloriole H Connectors provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
H Connectors contain H Connector and Receptacle adapter as the basis for coupling inside the adapter/connector housing.
Detail
Specifications
These products ensure reliability and compatibility with SC and LC connectors currently on the market.
H Connector Products are designed and tested to meet Telcordia GR-3120-CORE requirements for rugged outdoor environments.
H Connectors are specifically designed to significantly reduce required cable installation time for subscriber connection.
| Item | HOptic Connector Plug Type | |
| Connector Types | SC,LC Duplex | MT |
| Insertion Loss | ≦ 0.30dB | ≦ 0.75dB |
| Return Loss | ≧ 50dB(PC), 55dB(UPC), 60dB(APC) | ≧ 50dB(APC) |
| Operation Temp.(℃) | -40℃ ~ +70℃ | |
| Storage Temp.(℃) | -40℃ ~ +85℃ | |
Feature
*Patented product
*Design and Test - meets Telcordia GR-3120-CORE Requirements
*Complies with GR-326-CORE and RoHS
*Meets IP 68 dust and water protection (3 meters/7 days) Ratings
*500 minimum mating cycles
*Suitable for Outdoor and Indoor Applications
*Optitap® Compatible
