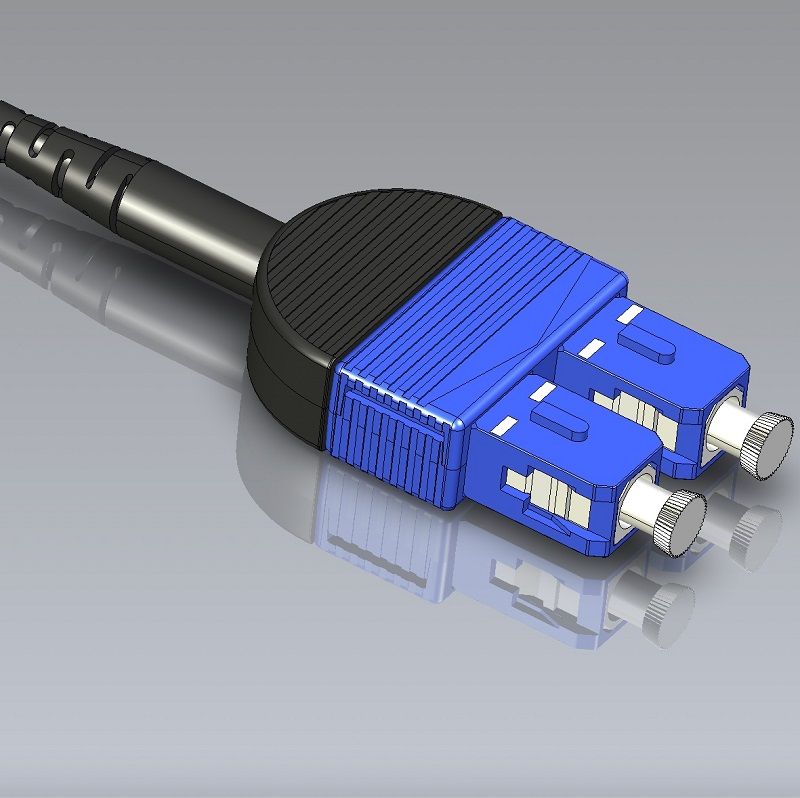

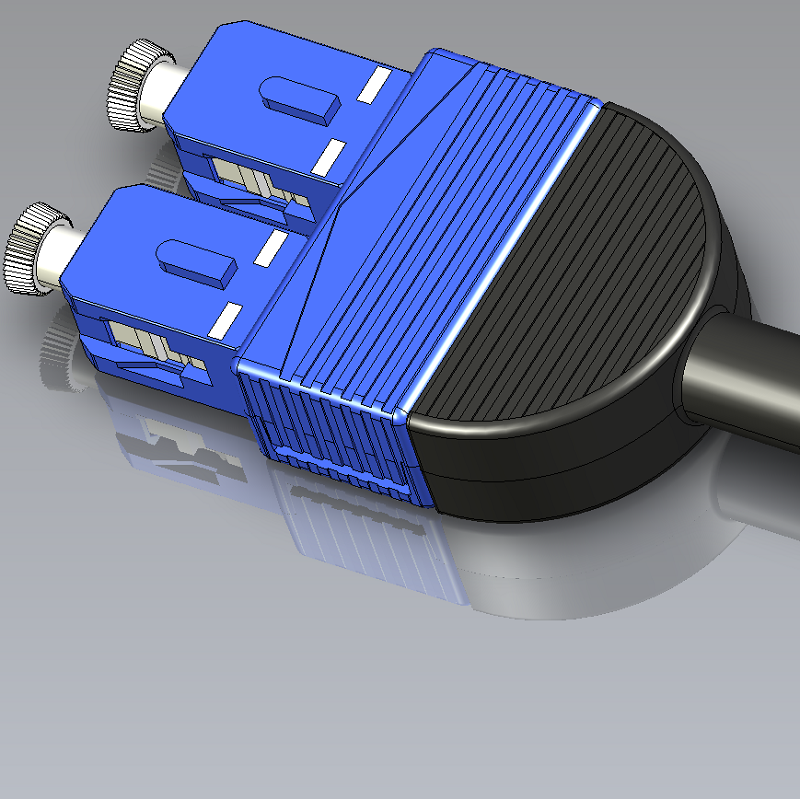

SC Uniboot Connector
SC Uniboot Connector
Detail
Specifications
SC Uniboot Connector is a compact design perfect for high-density application.
These reliable uniboot connectors are offered in single-mode, multimode, and APC types, available in jumper and cordage-type 2.0mm/3.0mm/5.0mm versions.
| Item | SC Uniboot Connector | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
- Telcordia: GR-326-CORE Compliant
- EU Regulations: RoHS, REACH Compliant
- Flammability Grade: UL 94V-0
