MPO Attenuator
MPO Attenuator
Detail
Specifications

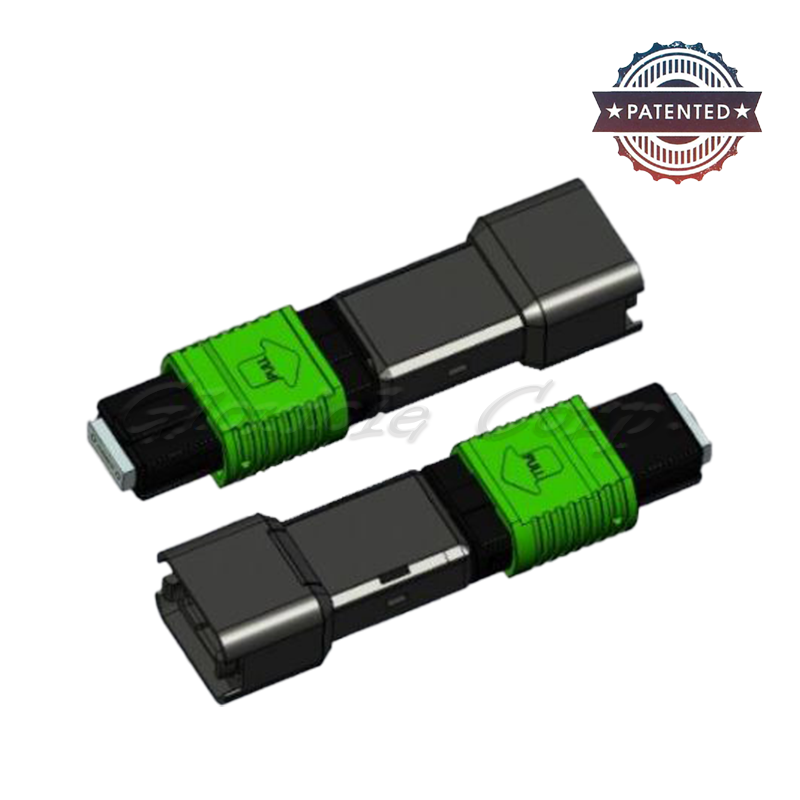

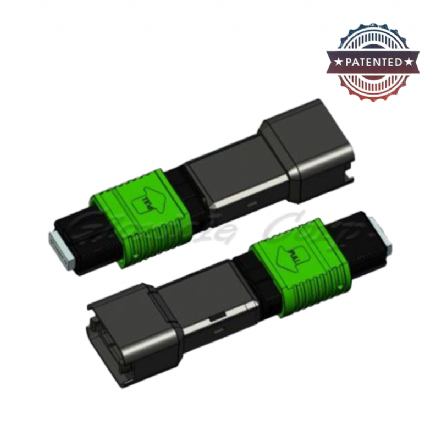

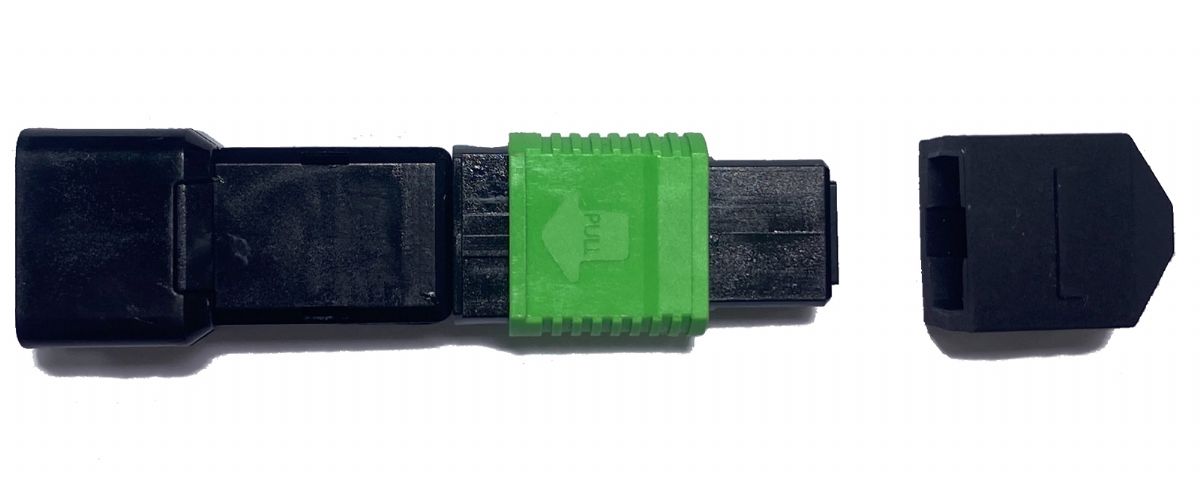

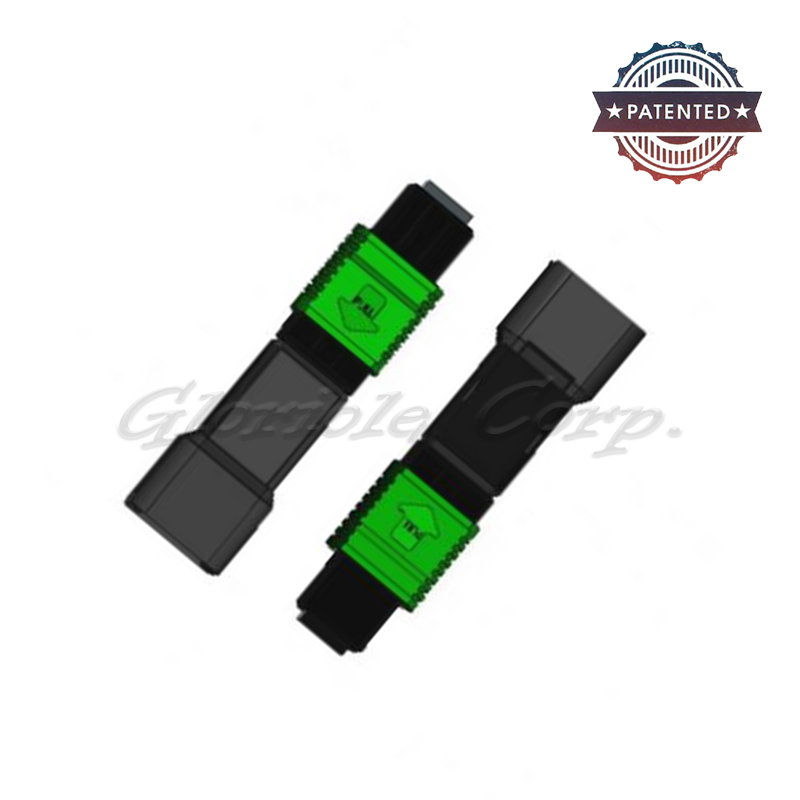

This MPO build out attenuator (BOA) is simple and compact with only 48.8 mm in length.
It can be applied to adjust the power levels of signal in all channels for optical communications at the output of light sources, and to test the linearity or measure dynamic range of optical power meters.
GET's MPO BOA with various structures design suitable for 8/12/16/24/32-fiber count for 40G, 100G, 200G, 400G and 800Gbps high speed transmission rate.
It is excellent for high density datacom and telecom application with optical transceiver, e.g. QSFP and OSFP which saves not only manpower, material resources but also installation time and space.
Applications
- High density Telecommunications
- Data Center
- Storage Area Network and Fiber Channel Application
- QSFP and OSFP
| Item | MPO Attenuator | |
| Fiber Count | 8F/12F/16F/24F/32F | |
| Operating Wavelength | SM:1310nm / 1550nm | MM:850nm |
| Attenuation Values | SM:1~20dB | MM:1~3dB |
| Tolerance | SM:±1dB for 1~10dB; ±10% for over 10dB | MM:±1dB for 1~3dB |
| Return Loss | ≧50dB for SM/APC(Typ: 60dB) | |
| Operating Temp. (℃) | -40℃ ~ +75℃ | |

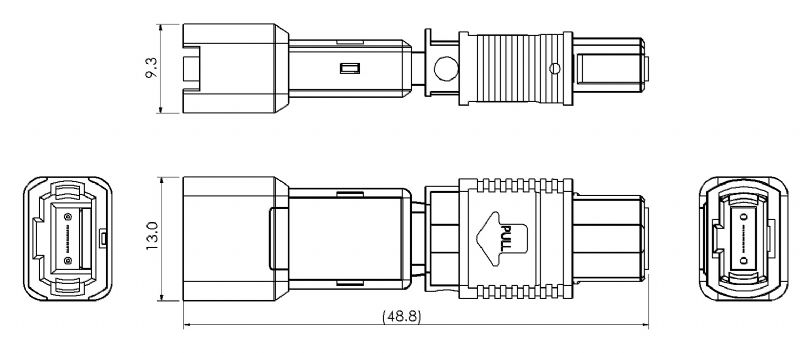

| Dimensions (L * W * H) | 48.8mm * 13.0mm * 9.3mm | |
Feature
- Patented product
- 100% IL & RL test
- High density application
- Compliant with RoHS
- Follow IEC 61754-7 and TIA/EIA 604-5
- Telcordia GR-1435-CORE
