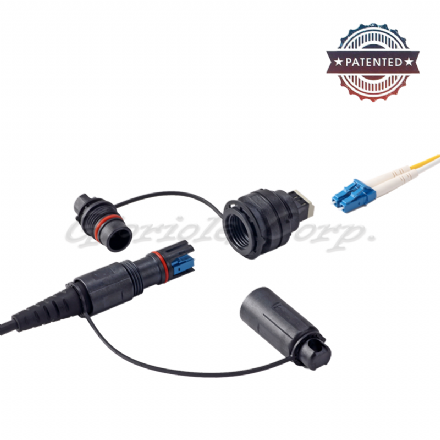

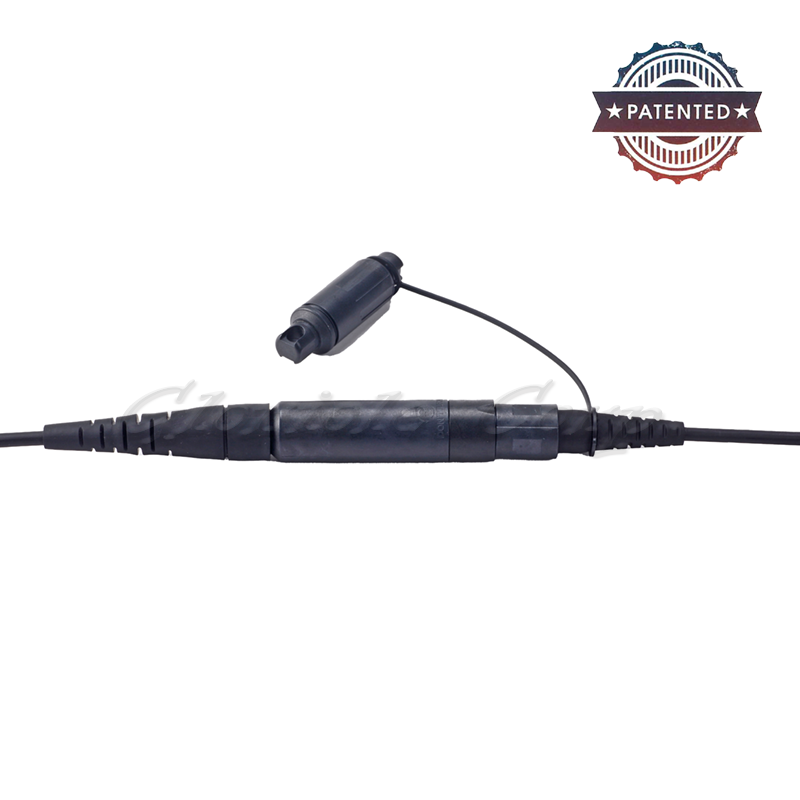

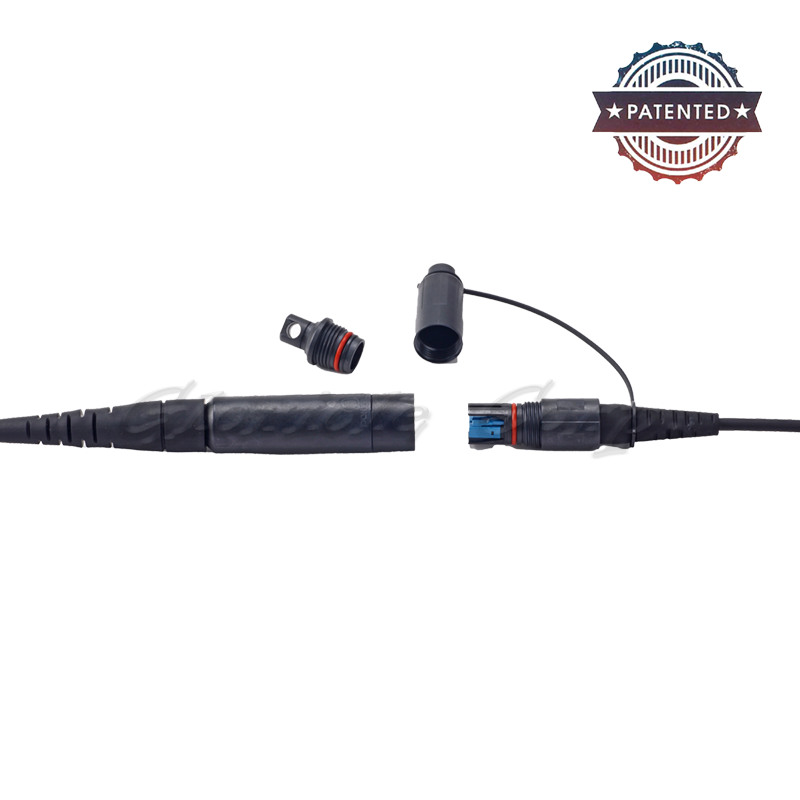

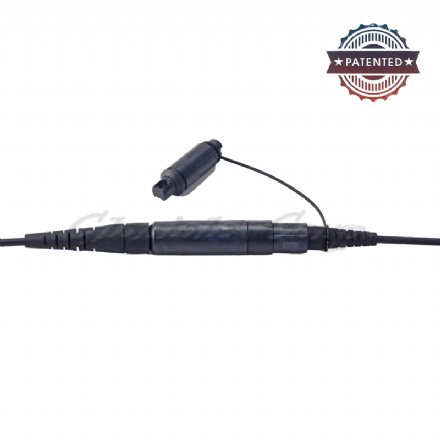

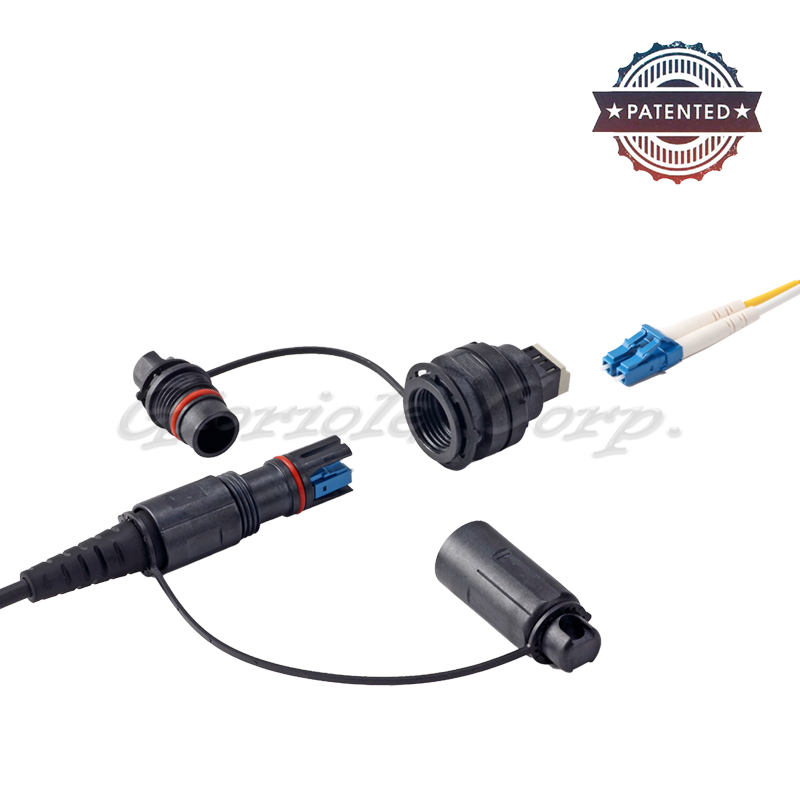

Gloriole H Connectors provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
H Connectors contain H Connector and Receptacle adapter as the basis for coupling inside the adapter/connector housing.
Parameters
|

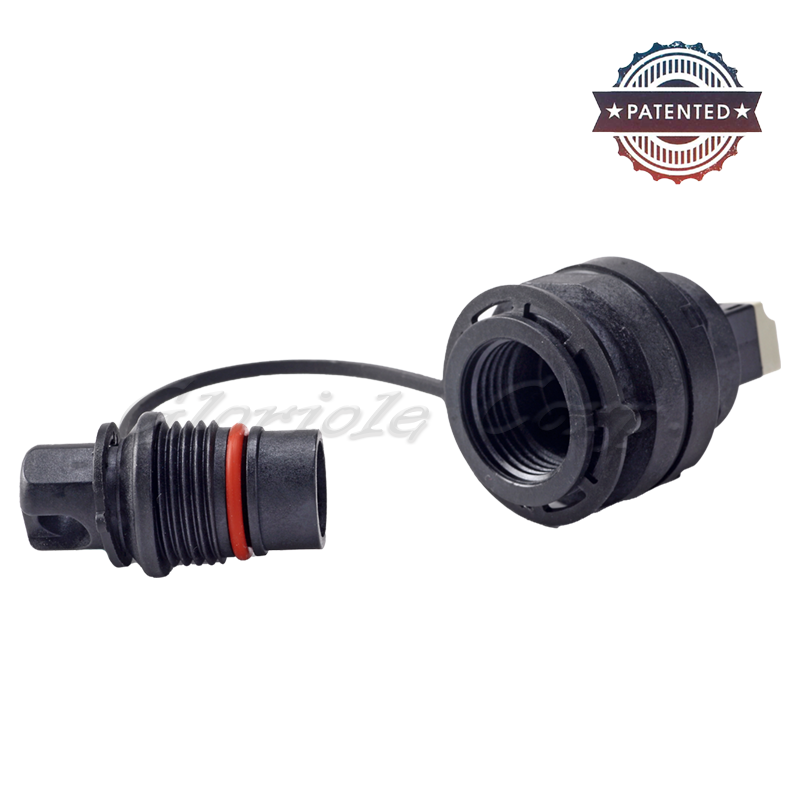

LC-H Bulkhead Receptacle Type
|
|
Connector Types
|
SC,LC Duplex
|
MT
|
Insertion Loss
|
≦ 0.3dB
|
≦ 0.75dB |
Return Loss
|
≧ 50dB(PC), 55dB(UPC), 60dB(APC)
|
≧ 50dB(APC)
|
Operation Temp.(℃) | -40℃ ~ +70℃ | |
StorageTemp.(℃)
|
-40℃ ~ +85℃ |
