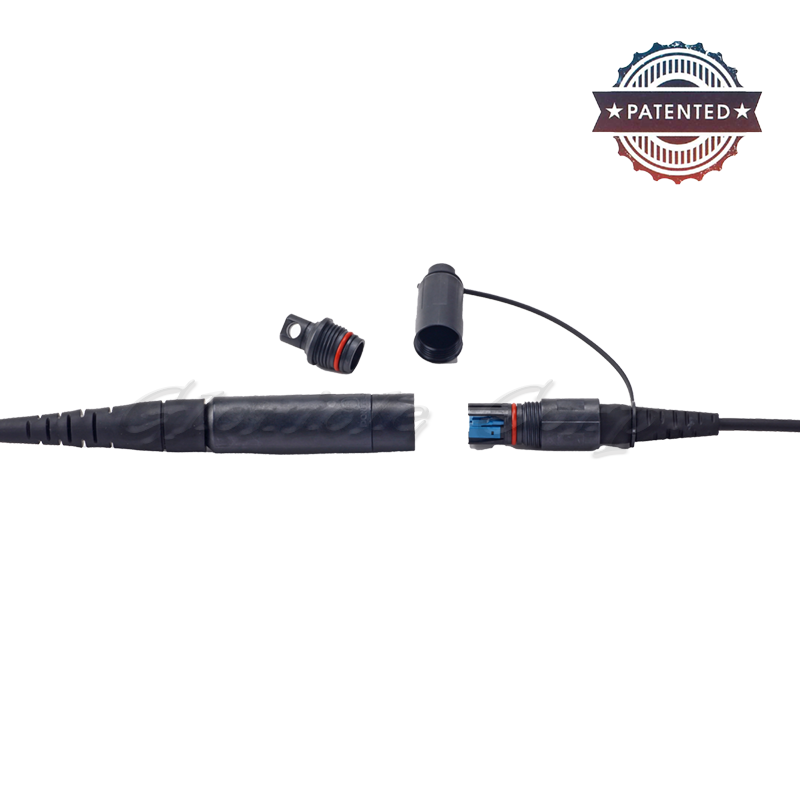

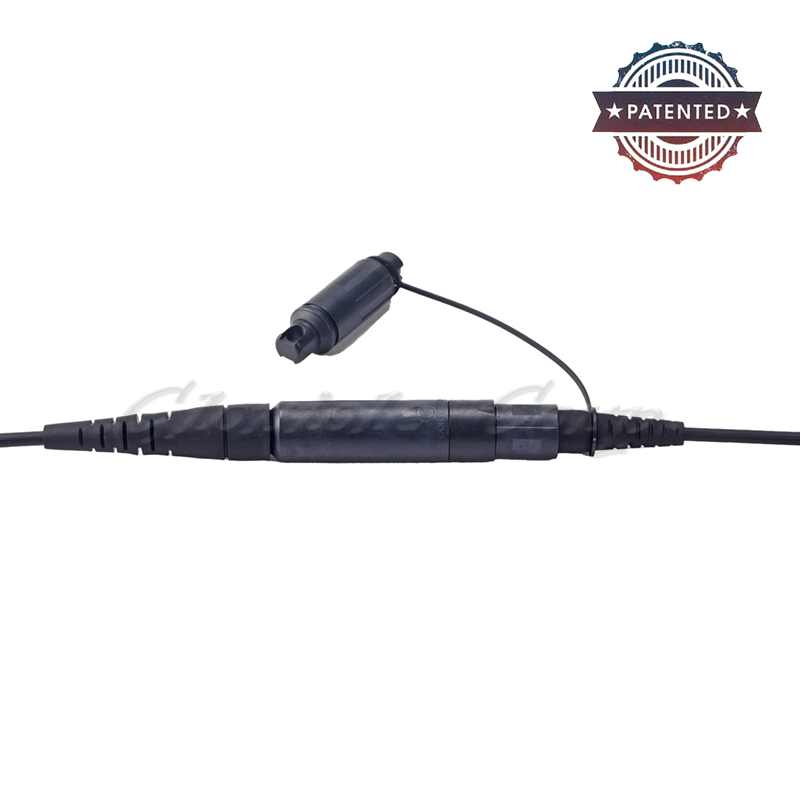

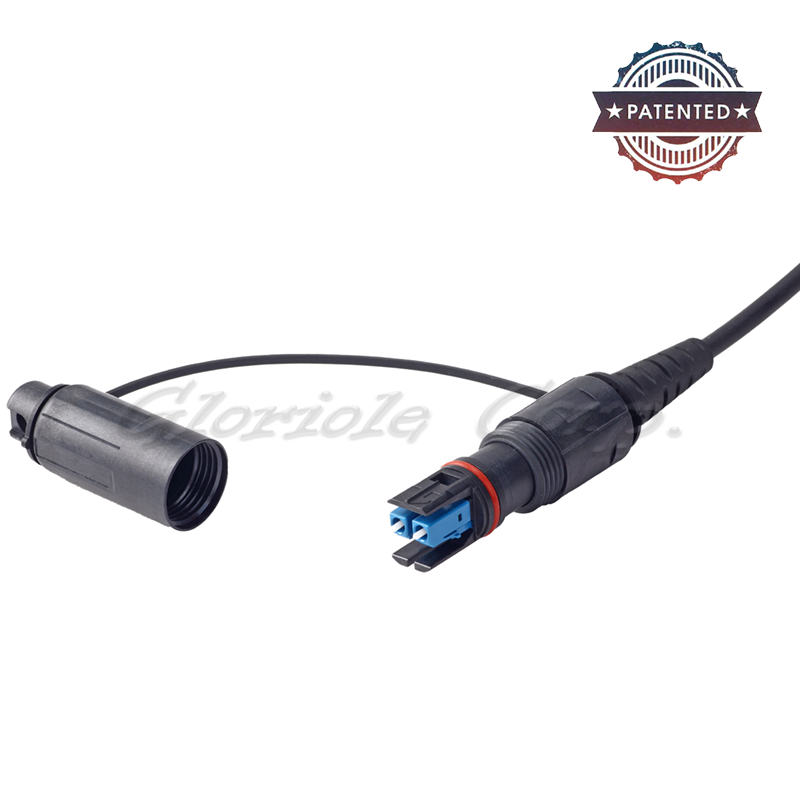

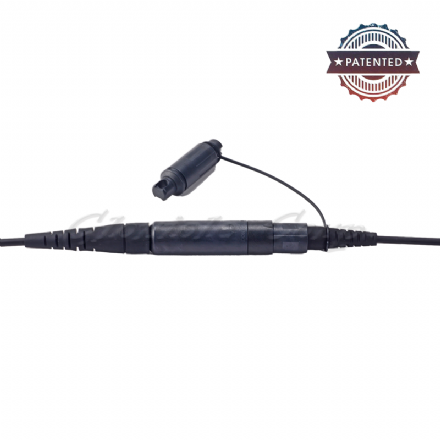

LC-H Connector Plug Type
Gloriole H Connectors provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

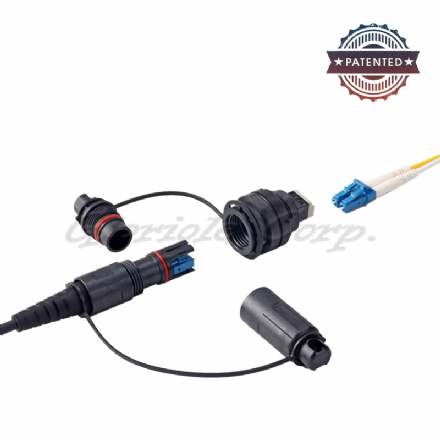

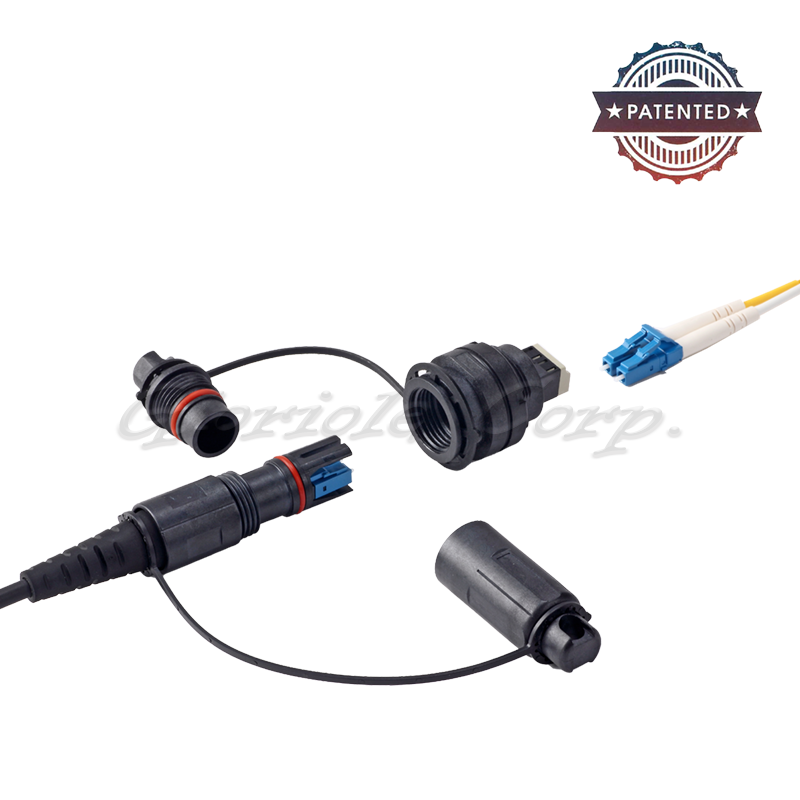

H Connectors contain H Connector and Receptacle adapter as the basis for coupling inside the adapter/connector housing.
Detail
Specifications
These products ensure reliability and compatibility with SC and LC connectors currently on the market.
H Connector Products are designed and tested to meet Telcordia GR-3120-CORE requirements for rugged outdoor environments.
H Connectors are specifically designed to significantly reduce required cable installation time for subscriber connection.
|
Parameters
|
LC-H Connector Plug Type
|
|
|
Connector Types
|
SC,LC Duplex
|
MT
|
|
Insertion Loss
|
≦ 0.3dB
|
≦ 0.75dB |
|
Return Loss
|
≧ 50dB(PC), 55dB(UPC), 60dB(APC)
|
≧ 50dB(APC)
|
| Operation Temp.(℃) | -40℃ ~ +70℃ | |
|
StorageTemp.(℃)
|
-40℃ ~ +85℃ | |
Feature
- Patented product
- Design and Test - meets Telcordia GR-3120-CORE Requirements
- Complies with Telcordia GR-326-CORE and RoHS
- Meets IP 68 dust and water protection (3 meters/7 days) Ratings
- 500 minimum mating cycles
- Suitable for Outdoor and Indoor Applications
- Optitap® Compatible
