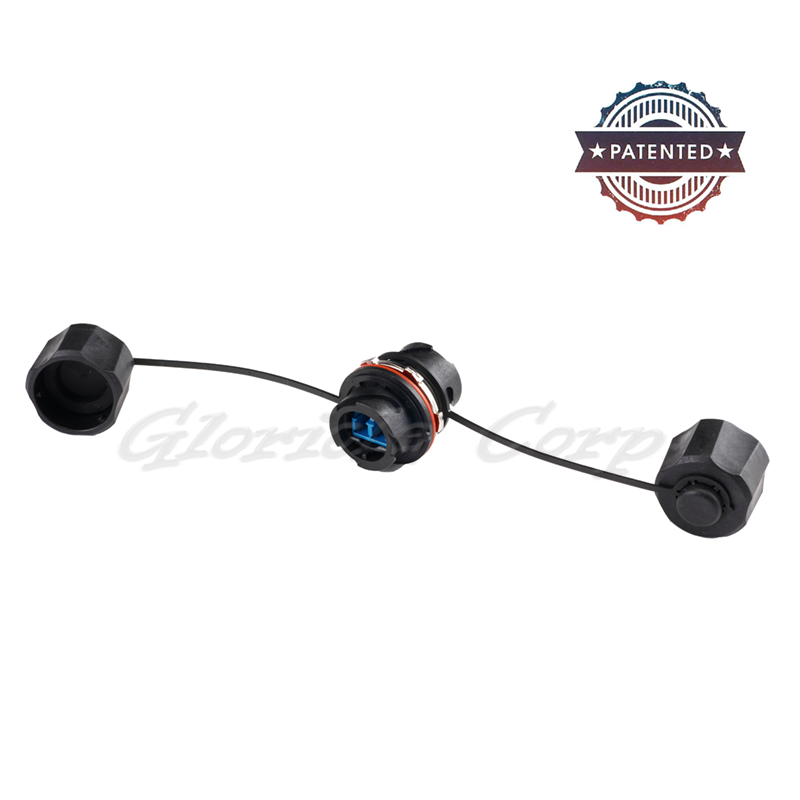

LC-IP In-line Receptacle Type
Gloriole’s LC-IP Connector is designed to provide an outdoor LC-based sealed connection to a board mounted SFP within a sealed enclosure.
Item | LC-IP In-line Receptacle Type | |
Mode Type | Single Mode | Multi Mode |
Insertion Loss | P Grade ≦ 0.15dB , A Grade ≦ 0.3dB | |
Return Loss | ≧ 50dB(PC), 55dB(UPC), 60dB(APC) | X |
Durability | < 0.2dB change , 500 mating | |
IP Rating | IP68 | |
Operation Temp.(℃) | -40℃ ~ +85℃ |
