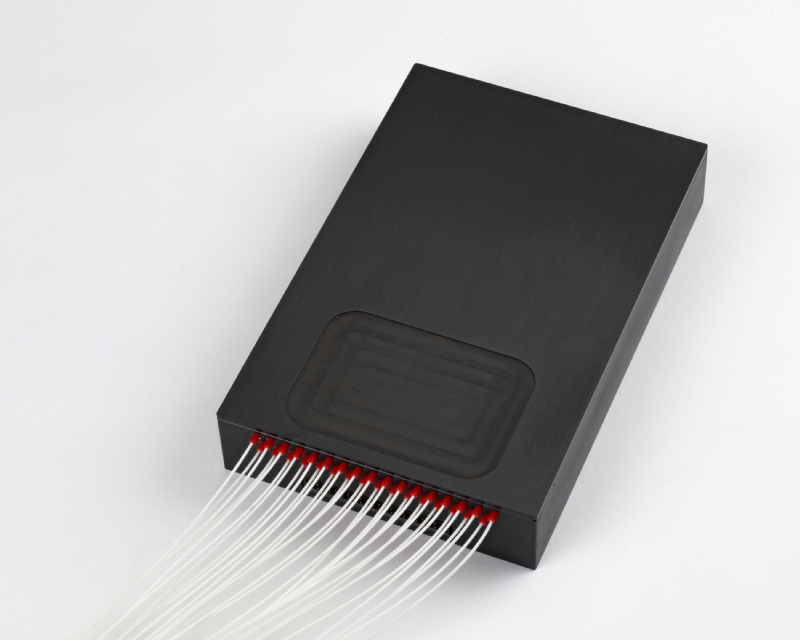

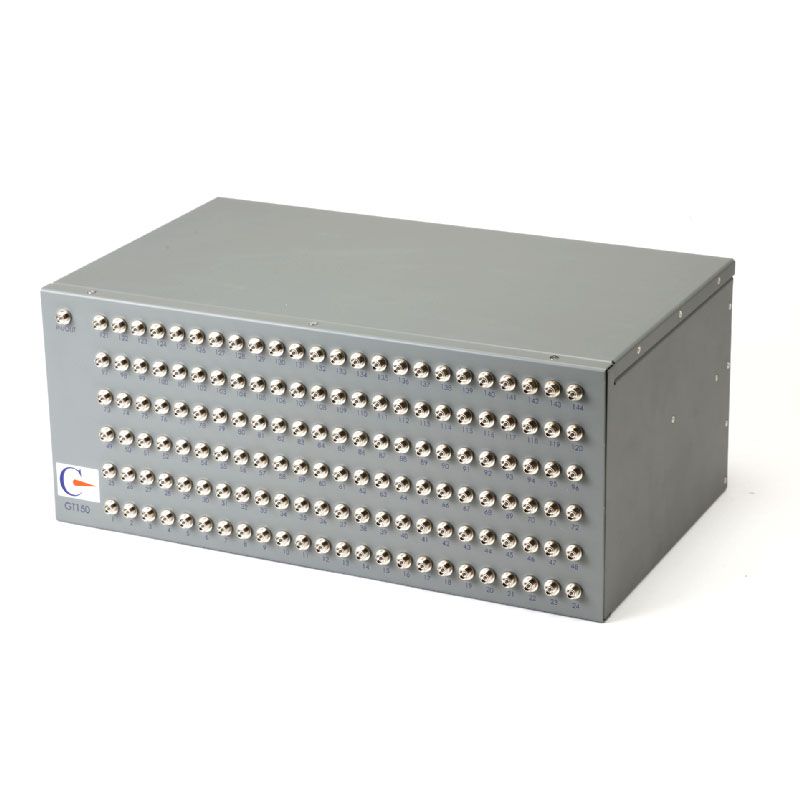

1xN optical switch
1xN optical switch
With superb optomechanical integrated design and advanced assembly skill, GET’s fiber 1xN optical switch provide excellent optical performance and reliable long-term operation.
It is suitable for laboratory, measurement, light path switching, and fiber monitoring in fiber optics communication and fiber sensing field.
Detail
Specifications
APPLICATIONS
- RFTS
- Fiber sensing
- Fiber network monitoring
- Fiber Optical Protection
- Measurement automation
Most important characteristic of optical switch is channel repeatability.
It will affect the accuracy of optical device performance test during long term measurement.

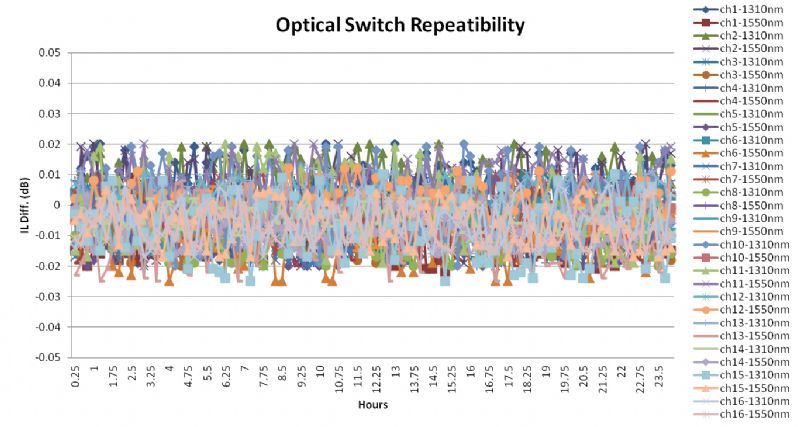

Within ±0.03 dB of channel repeatability (Fig. 1), GET's 1xN optical switch series is suitable for fiber optics component testing in lab and manufacturing.

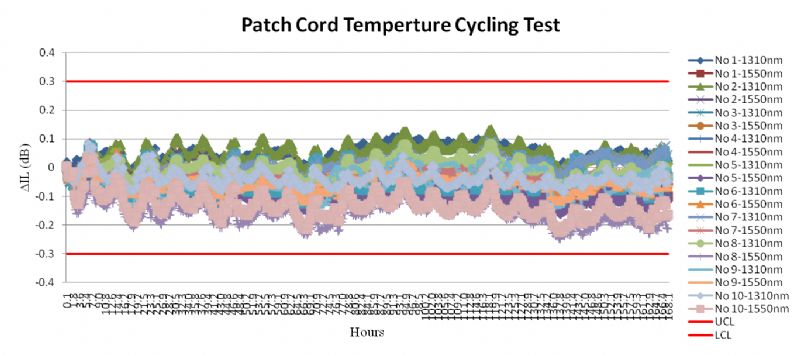

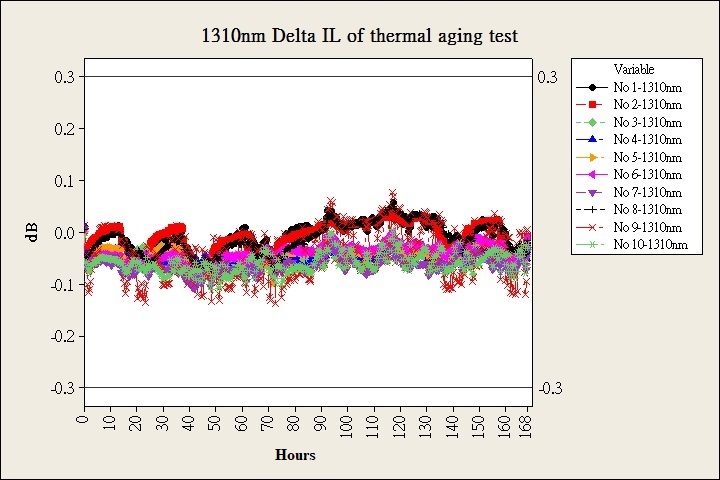

Figures 2 and 3 are part of GR-326-CORE environmental testing for product verification.
Figure 1
Figure 2
Figure 3
DATA SHEET
Feature
- Wide Operation Wavelength Range.
- Multiple control methods.
- Fast channel switching.
- Low insertion loss & crosstalk.
- Telcordia GR-1073-CORE & GR-1221-CORE Compliant.
