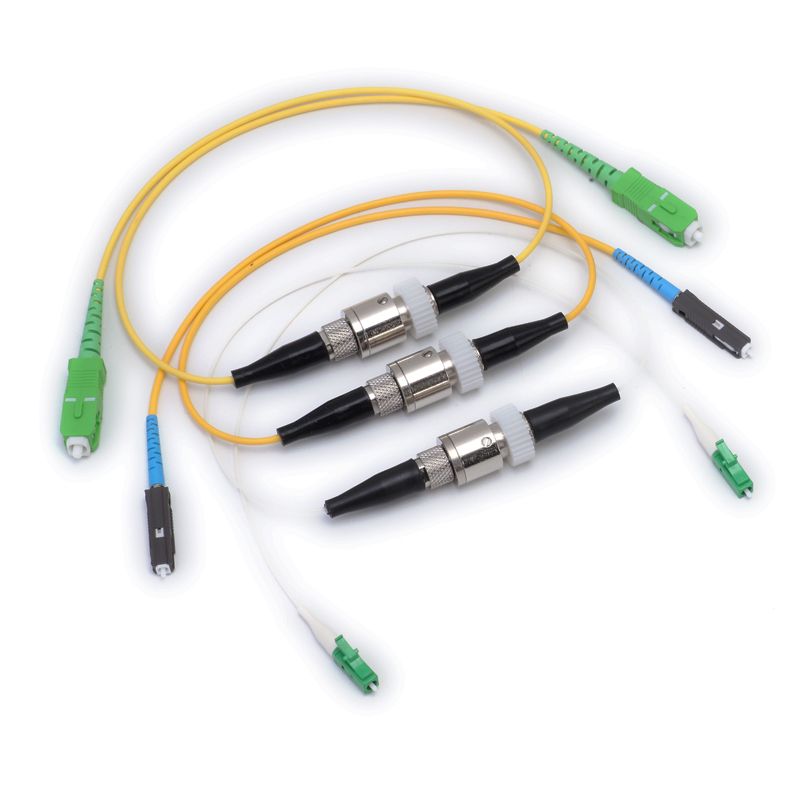

Variable Optical Attenuator
Gloriole’s Variable Optical Attenuator (VOA) can be applied to adjust the power levels of signals in optical communications at the output of light sources, E/O converters and for testing the linearity or dynamic range of optical power meters.
Gloriole’s Variable Optical Attenuator (VOA) can also be used in optical amplifier systems to balance the gain across the different operating wavelengths.
Detail
Specifications
Cable options offer in 0.9mm, 2mm or 3mm with or without connectors.
| Item | Variable Optical Attenuator | ||||
| Mode | Single | Multi | |||
| Wavelength | 1310nm and 1550nm | 850nm and 1300nm | |||
| 1310nm or 1550nm | 850nm or 1300nm | ||||
| Range(dB) | 1~35 | 1~20 | |||
| Resolution | 0.2dB | ||||
| Reflectance | PC | ≧ 45dB | X | ||
| APC | ≧ 50dB | ||||
| Adjust Method | Twist by hand | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
| Storage Temp. (℃) | -40℃ ~ +85℃ | ||||
Feature
*Environmentally stable
*Easy installation
*Wide attenuation Range
*High performance - Low excess loss, High return loss
