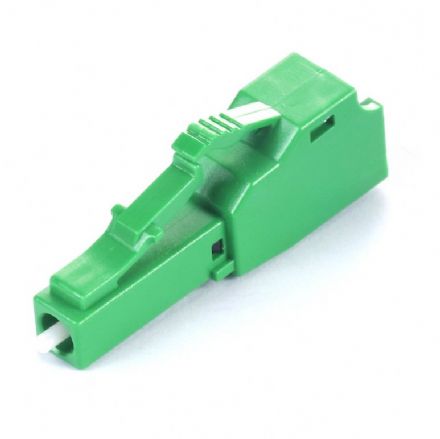

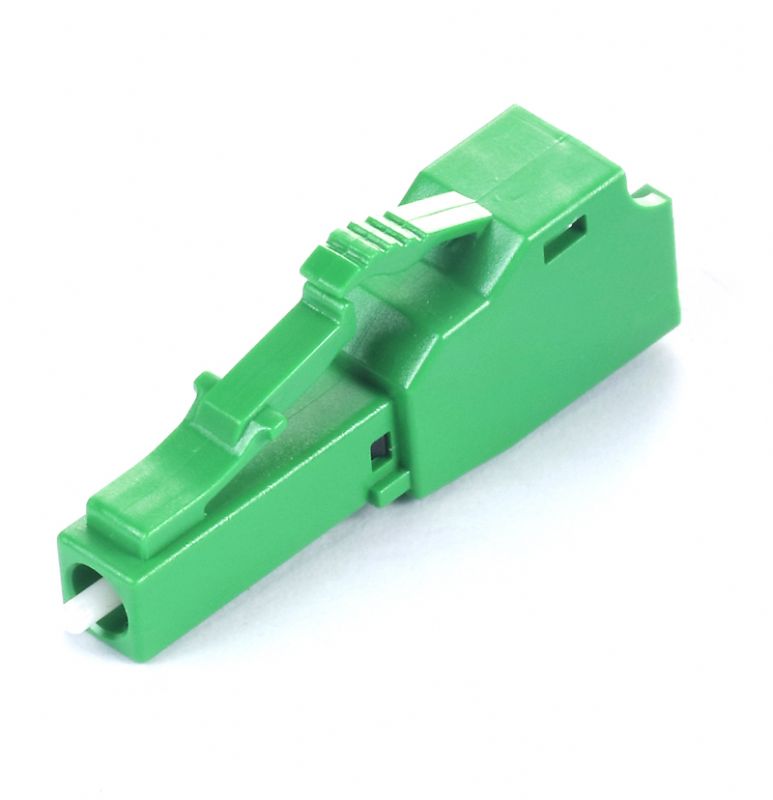

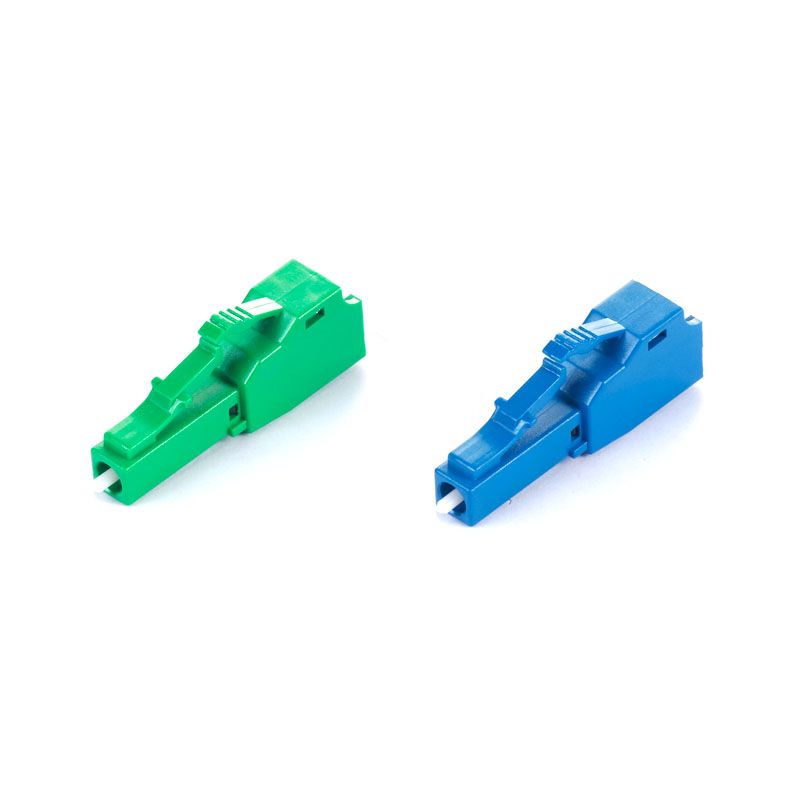

Gloriole manufactures the LC Build-Out Attenuator One-Piece Type (LC BOA One-Piece Type) styles to meet your specific requirements
Gloriole’s SM and MM Attenuators can be applied to adjust the power levels of signals in optical communications at the output of light sources, E/O converters and for testing the linearity or dynamic range of optical power meters.
Gloriole's Attenuators can also be used in optical amplifier systems to balance the gain across the different operating wavelengths.
Item | LC Build-Out Attenuator One-Piece Type (LC BOA One-Piece Type) | ||||
Mode | Single | Multi | |||
Wavelength | 1310nm and 1550nm | 850nm | |||
1310nm or 1550nm | |||||
Range(dB) | 1~25 | 1~6 | |||
Variation | 0dB | Super≦ 0.5dB ; Ultra≦ 0.3dB | ≦ 0.5dB | ||
< 6dB | Super±0.75dB ; Ultra±0.5dB | ≦ 6dB ±1dB | |||
≧ 6dB | Super±15% ; Ultra±10% | ||||
Reflectance | PC | ≧ 45dB | X | ||
UPC | ≧ 50dB | ||||
APC | Super ≧ 60dB ; Ultra ≧ 65dB | ||||
Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
Storage Temp. (℃) | -40℃ ~ +85℃ |
