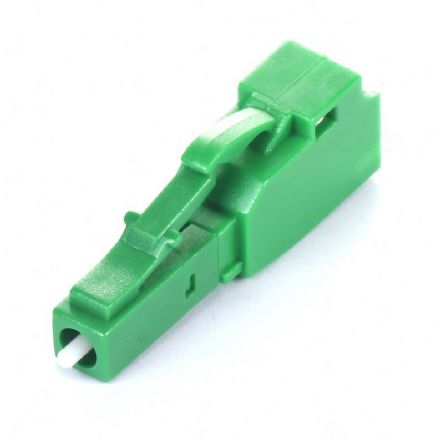

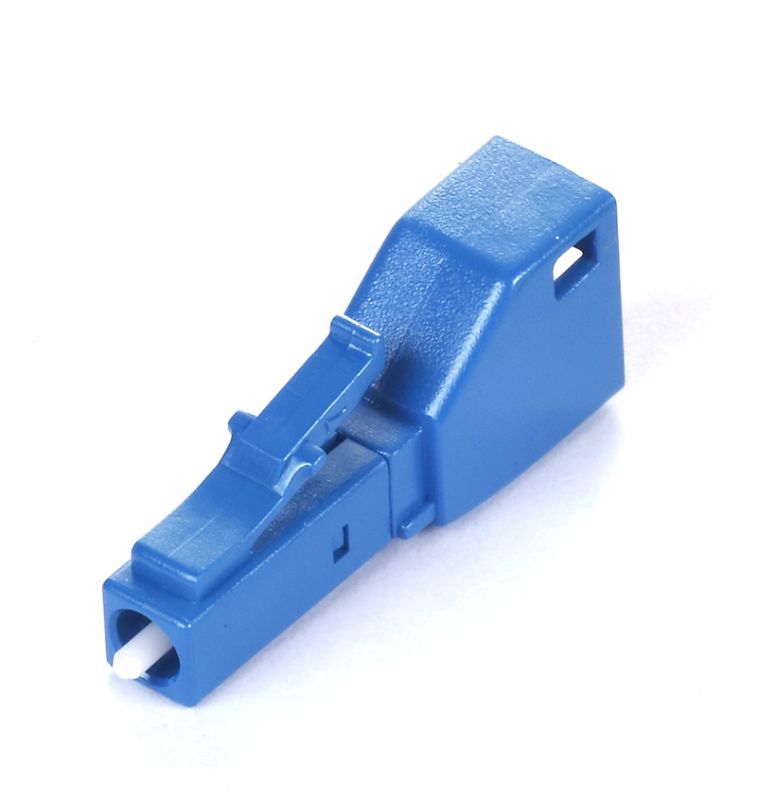

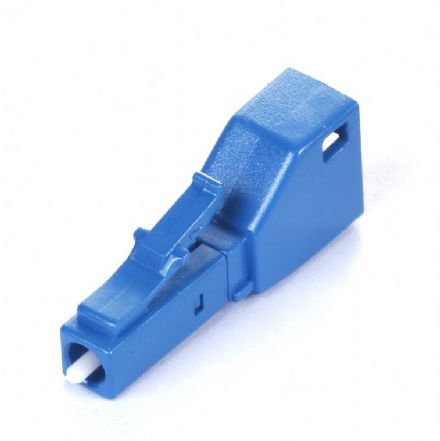

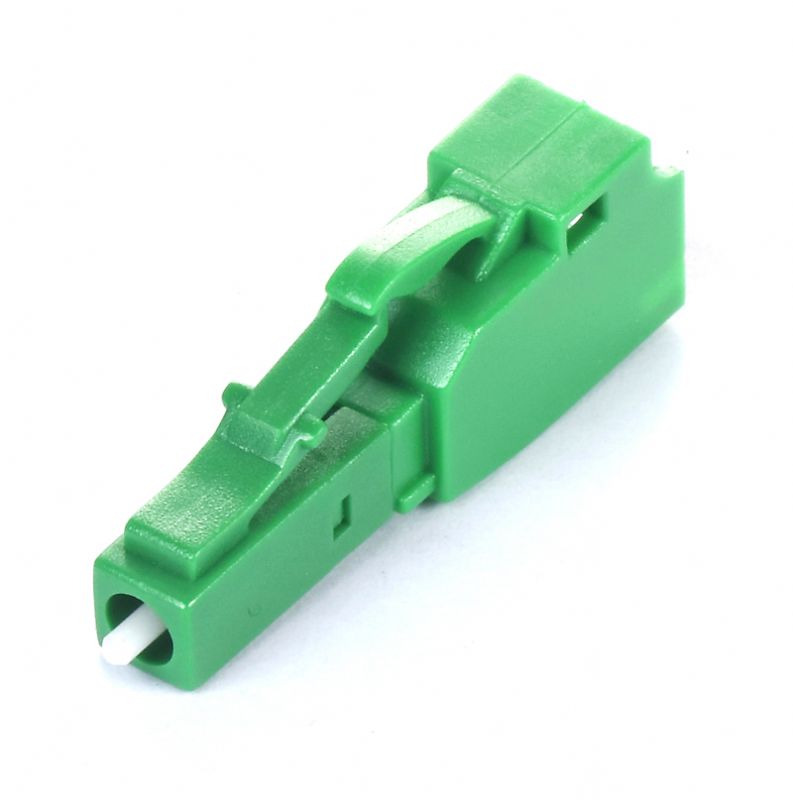

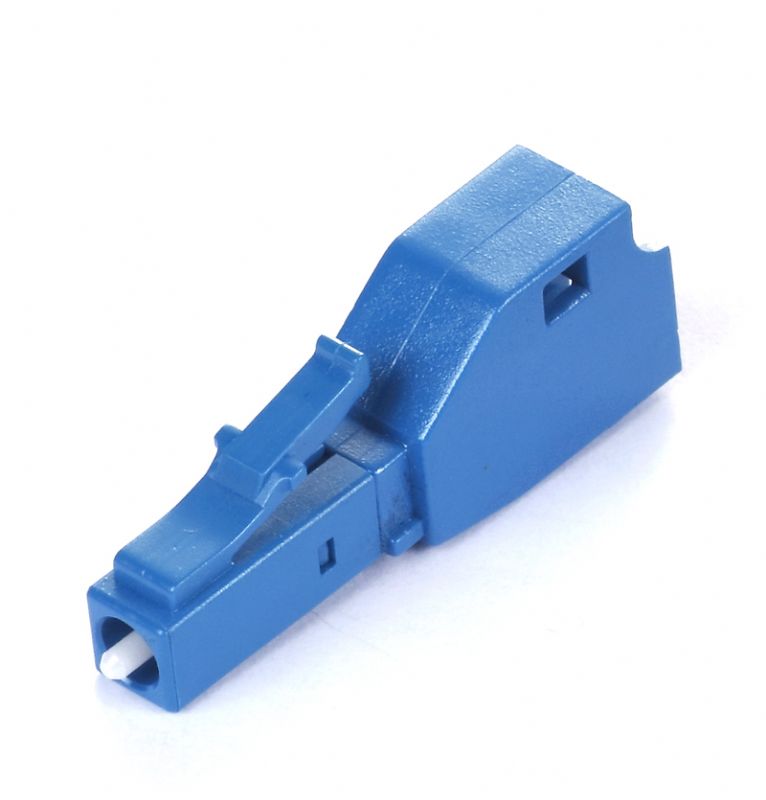

LC BOA
Gloriole manufactures the LC Build-Out Attenuator (LC BOA) styles to meet your specific requirements.
Gloriole’s SM and MM Attenuators can be applied to adjust the power levels of signals in optical communications at the output of light sources, E/O converters and for testing the linearity or dynamic range of optical power meters.
Detail
Specifications
Gloriole’s Attenuators can also be used in optical amplifier systems to balance the gain across the different operating wavelengths.
| Item | LC Build-Out Attenuator (LC BOA) | ||||
| Mode | Single | Multi | |||
| Wavelength | 1310nm and 1550nm | 850nm | |||
| 1310nm or 1550nm | |||||
| Range(dB) | 1~25 | 1~6 | |||
| Variation | 0dB | Super≦ 0.5dB ; Ultra≦ 0.3dB | ≦ 0.5dB | ||
| < 6dB | Super±0.75dB ; Ultra±0.5dB | ≦ 6dB ±1dB | |||
| ≧ 6dB | Super±15% ; Ultra±10% | ||||
| Reflectance | PC | ≧ 45dB | X | ||
| UPC | ≧ 50dB | ||||
| APC | Super ≧ 60dB ; Ultra ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | ||||
| Storage Temp. (℃) | -40℃ ~ +85℃ | ||||
Feature
* Easy installation - compact design fits into existing connectors or patch panels
* Consistent performance - precise attenuation value and high return loss
* Diversity - various connectors for option
* High Stability and High Reliability
* Flawless end face
* Telcordia GR-910-CORE and RoHS Compliant
