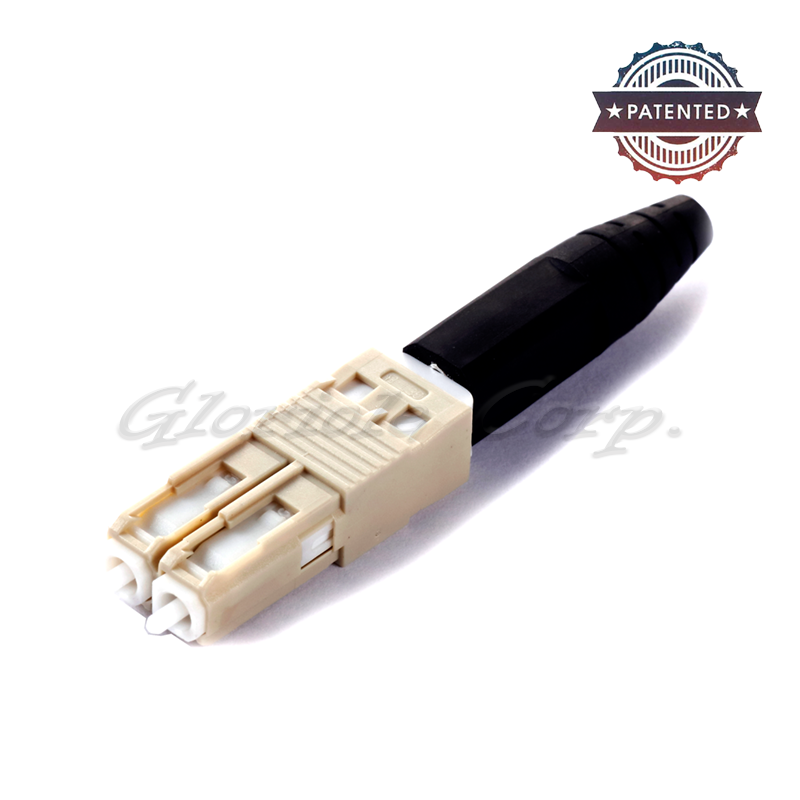

MU Uniboot Connector
MU Uniboot Connector

Gloriole’s MU connector and adapter transfers from NTT-AT.

Gloriole’s MU uniboot connector can decrease the amount of cables in half and is suitable for in data centers where cable counts are high and space limited.

Gloriole’s MU uniboot connector benefits push-pull tab to un-plug from adapter on high dense.


Detail


Specifications

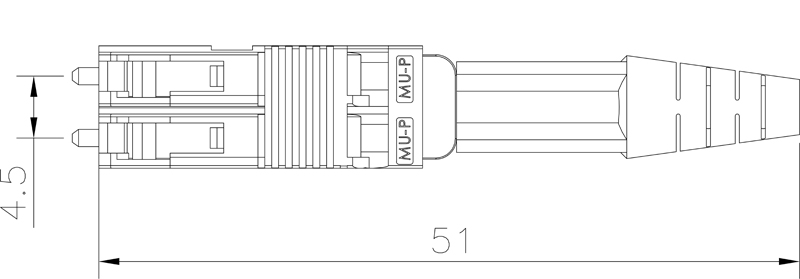

Our MU uniboot connector is used in, 2.0mm, 3.0mm duplex round cable and available in SM (PC & APC), MM.

Item MU Uniboot Connector
Mode Single Multi
Fiber Diameter 9/125um 50/125um & 62.5/125um
Insertion Loss Premier Gride A Grade Premier Gride A Grade
≦ 0.15dB ≦ 0.30dB ≦ 0.15dB ≦ 0.3dB
Return Loss PC ≧ 50dB X
UPC ≧ 55dB
APC ≧ 65dB
Operating Temp. (℃) -40℃ ~ +75℃
Storage Temp. (℃) -40℃ ~ +85℃



Feature
*Patented product
*High precision alignment
*Low Insertion Loss and High Return Loss
*Easy installation
*Compack design and High-density package
*Uniboot design to decrease cable 50% volume, suitable for data centers application
*Telcordia GR-326-CORE, NTT & JIS compliant
*SM/PC, SM/APC and MM/PC versions
