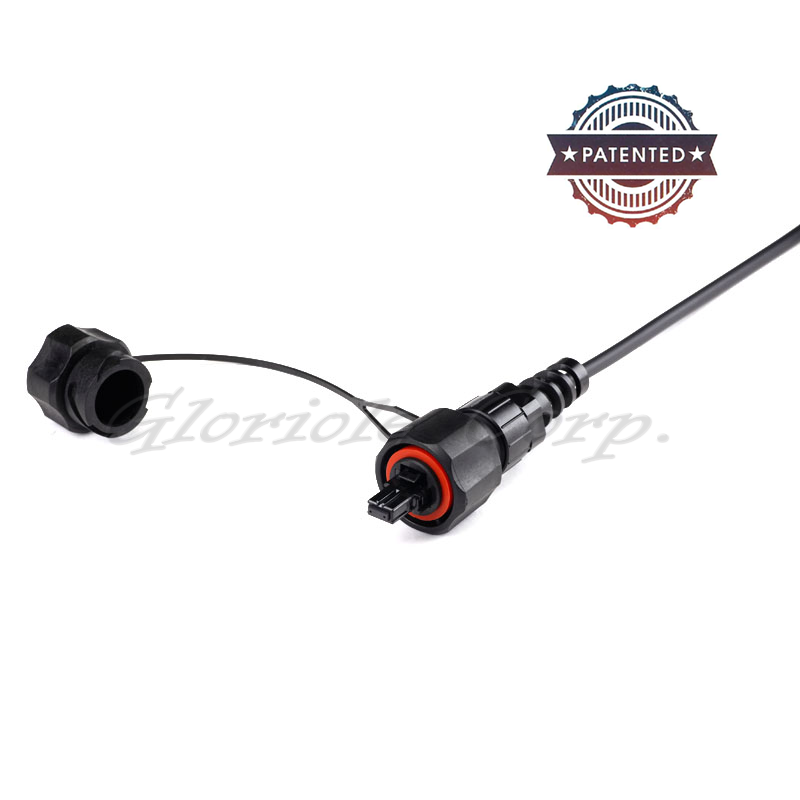

MT-IP Connector Plug Type
MT-IP Connector Plug Type
Gloriole’s MT-IP series product are designed to provide outdoor sealed connection in multi-fibers to mate sealed enclosure.
Detail
Specifications
The series product provides IP68 grade dust and water proof requirement; resistant to chemical and gasses corrosion in harsh environments.
With ODVA compatible design, MT-IP series product widely used in many industrial applications: LTE, industrial automation and outdoor distributed antenna system.
Applications
- RRU/BTS/NodeB/eNodeB
- CTJ Box in FTTA
- Macro/Micro Cell and BSS in 4G LTE-A & 5G
- Industrial Control/Automation for industry 4.0
| Item | MT-IP Connector Plug Type | |
| Mode Type | Single Mode | Multi Mode |
| Insertion Loss | Standard ≦ 0.15dB , Low Loss ≦ 0.35dB | ≦ 0.6dB |
| Return Loss | ≧ 55dB(APC) | X |
| Durability | < 0.3dB change , 500 mating | |
| IP Rating | IP68 (2M , 7 days) | |
| Operation Temp.(℃) | -40℃ ~ +75℃ | |
| Storage Temp.(℃) | -40℃ ~ +85℃ | |
Feature
- Patented product
- Modular and bayonet style mating easy to field installation
- Minimum 500 cycles mating durability
- IEC 61076-3-106 interface
- RoHS REACH compliant
