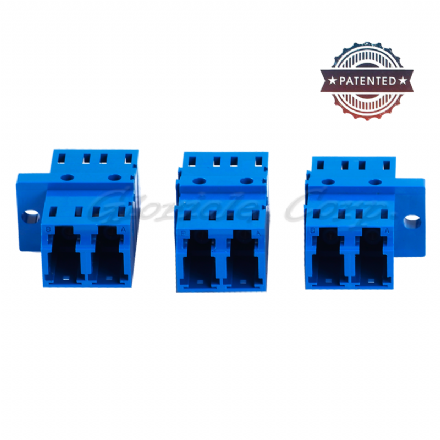

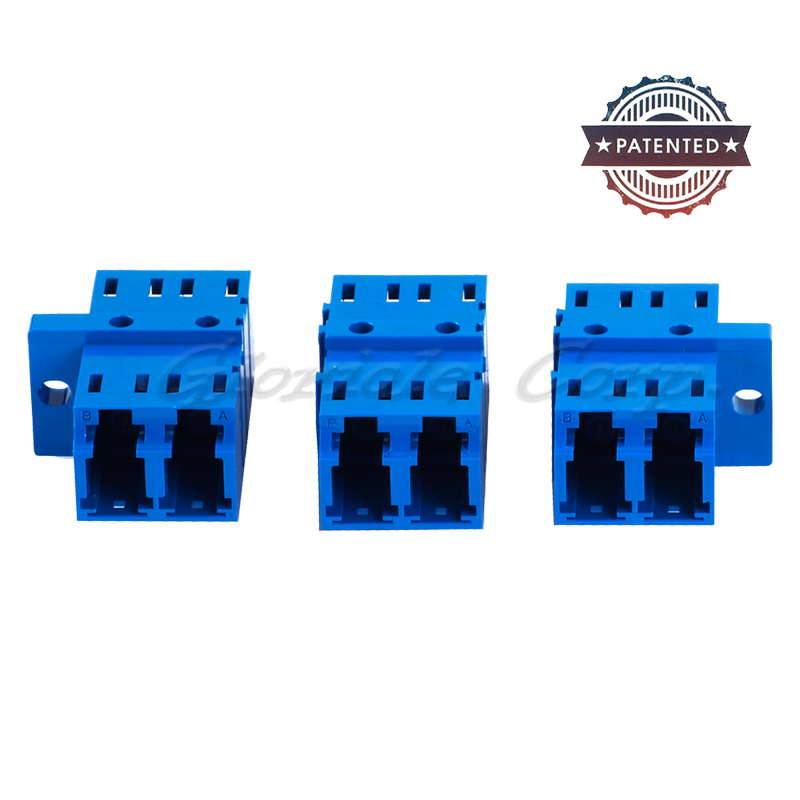

800x800_2.png "LC Stackable Adapter(All Parts)")

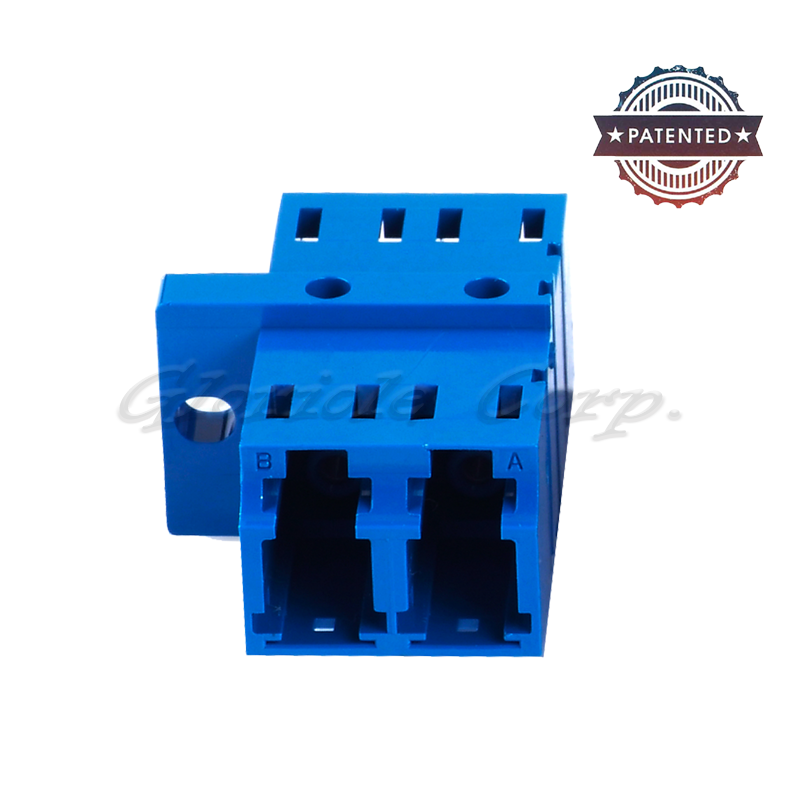

800x800_2.png "LC Stackable Adapter(Left Parts)")

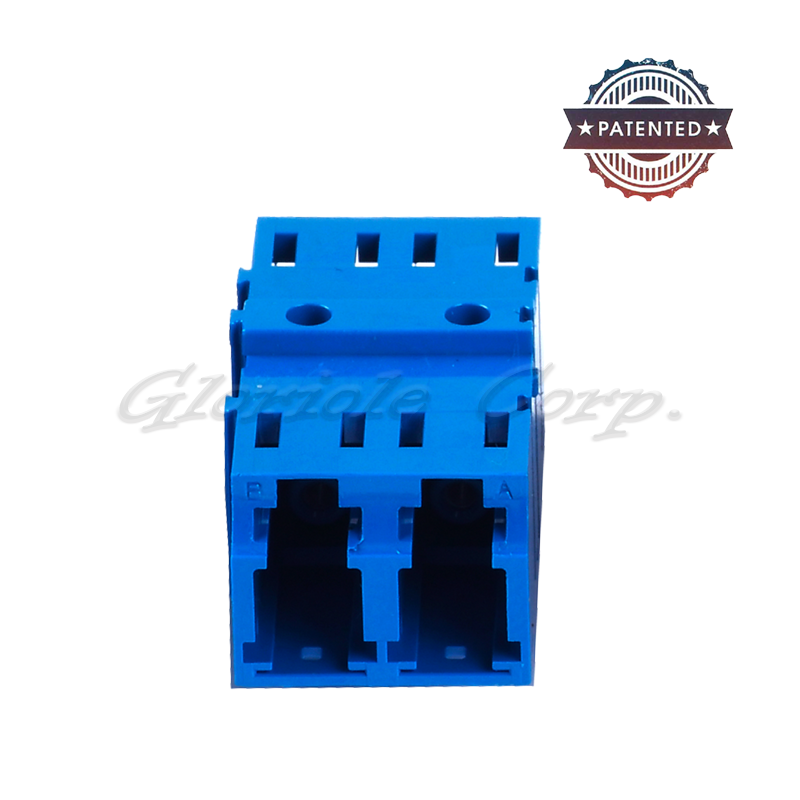

800x800_2.png "LC Stackable Adapter(Center Parts)")

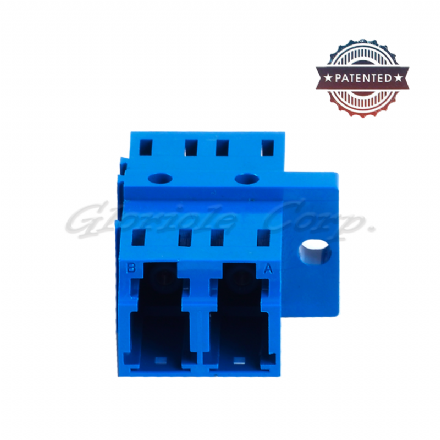

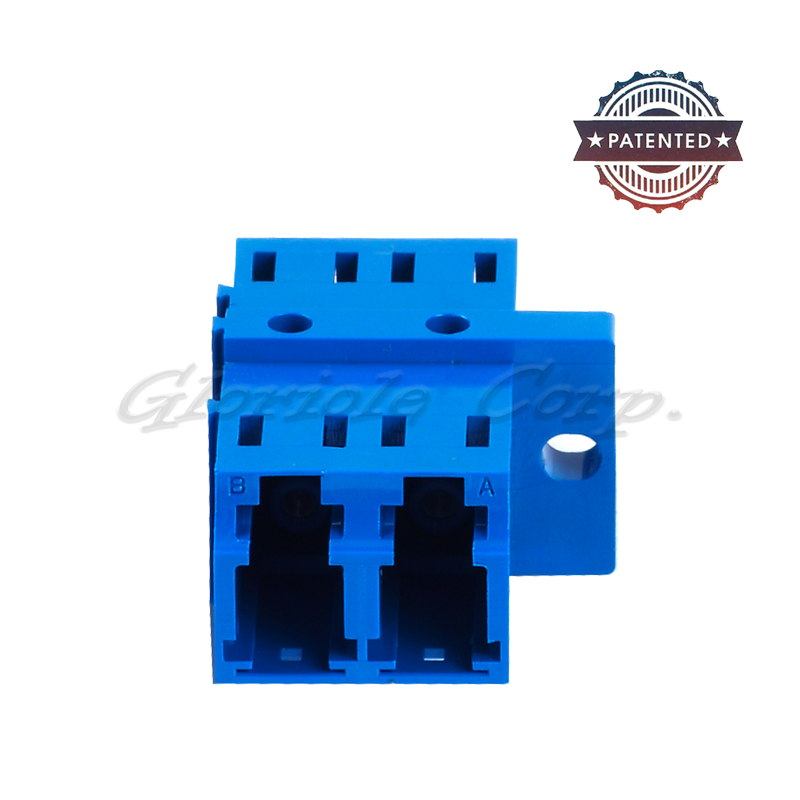

800x800_2.png "LC Stackable Adapter(Right Parts)")
2.png "LC Stackable Adapter")
2.png "LC Stackable Adapter")
800x800_2.png "LC Stackable Adapter(All Parts)")
800x800_2.png "LC Stackable Adapter(Left Parts)")
800x800_2.png "LC Stackable Adapter(Center Parts)")
800x800_2.png "LC Stackable Adapter(Right Parts)")

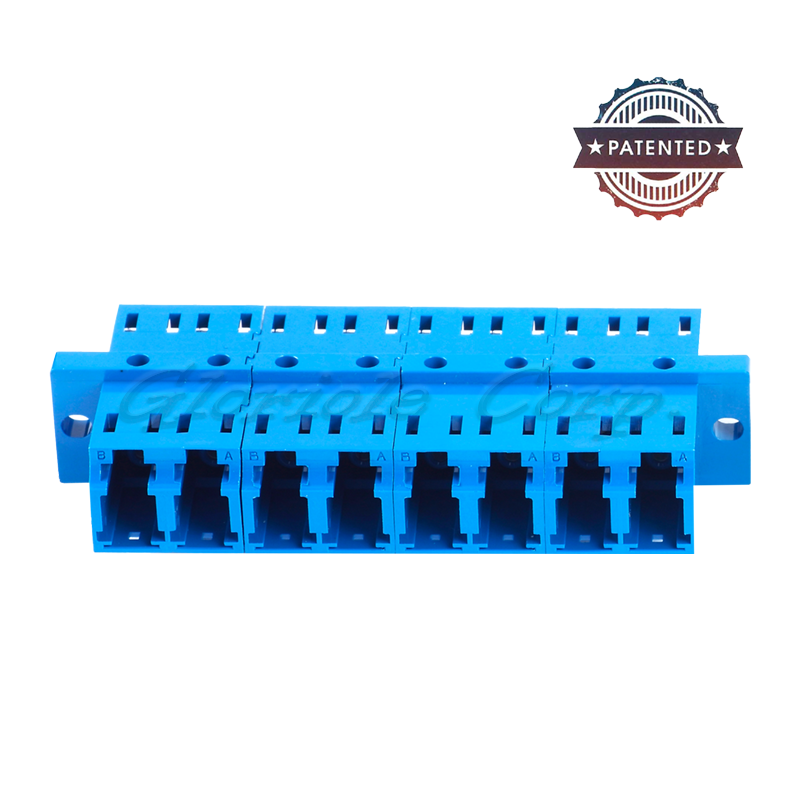

LC Stackable Adapter Straight Type
Gloriole’s LC stackable adapter is patented product that can stack multiple rows and columns and completely meet the request.
LC stackable adapter has straight and angled type.

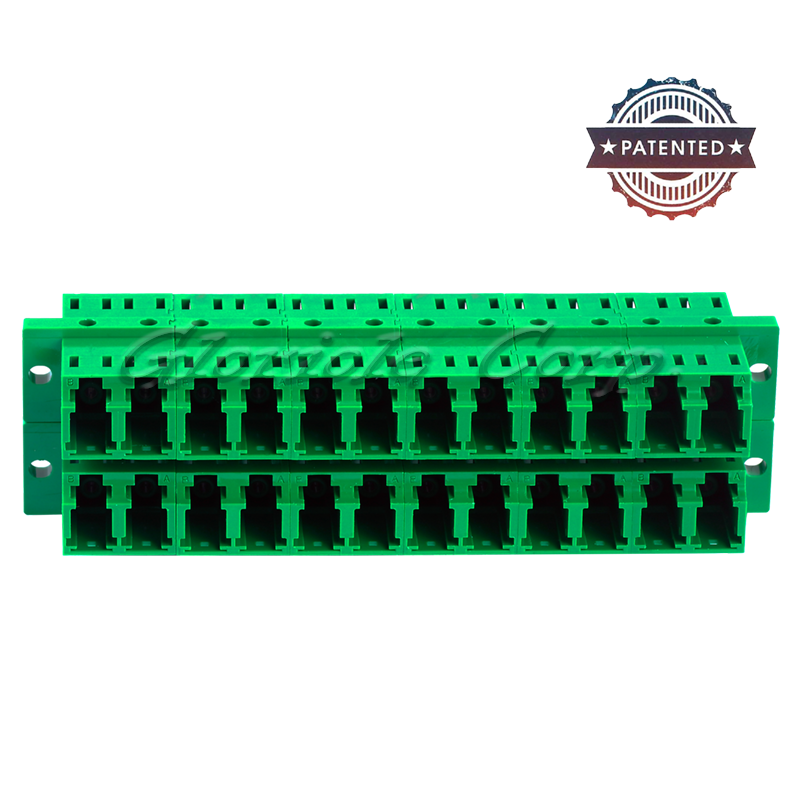

In 19” 1U rackmount, LC stackable adapter with straight type can accommodate 180 ports.
Detail
Specifications
Gloriole’s LC stackable adapter is available in flanged and non-flanged versions for SM, MM and APC.
The internal and external shutter are optional to shield potentially harmful light and provide a guard against debris such as dust and dirt.
| Item | LC Stackable Adapter | |
| Mode | Single | Multi |
| Housing Color | APC=Green,PC=Blue | Beige / Aqua / Magenta |
| Main Body Material | UL-Rated Plastic | |
| Sleeve | Zirconia | |
| Typical Insertion Loss(dB) | ≦ 0.15dB | |
| Durability | < 0.2dB change, 500mating | |
| Operating Temp. | -40℃ ~ +75℃ | |
| Storage Temp. | -40℃ ~ +85℃ | |
Feature
* Patented product
*Ultra Flexible - Can stack multiple rows and columns and completely fulfill the request
* High Density - 1U chassis can accommodate 180 ports LC adapters
* Diversity - Blue, Green, Beige, Aqua. Black and Magenta are available under request
* RoHS and Reach Compliant
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
