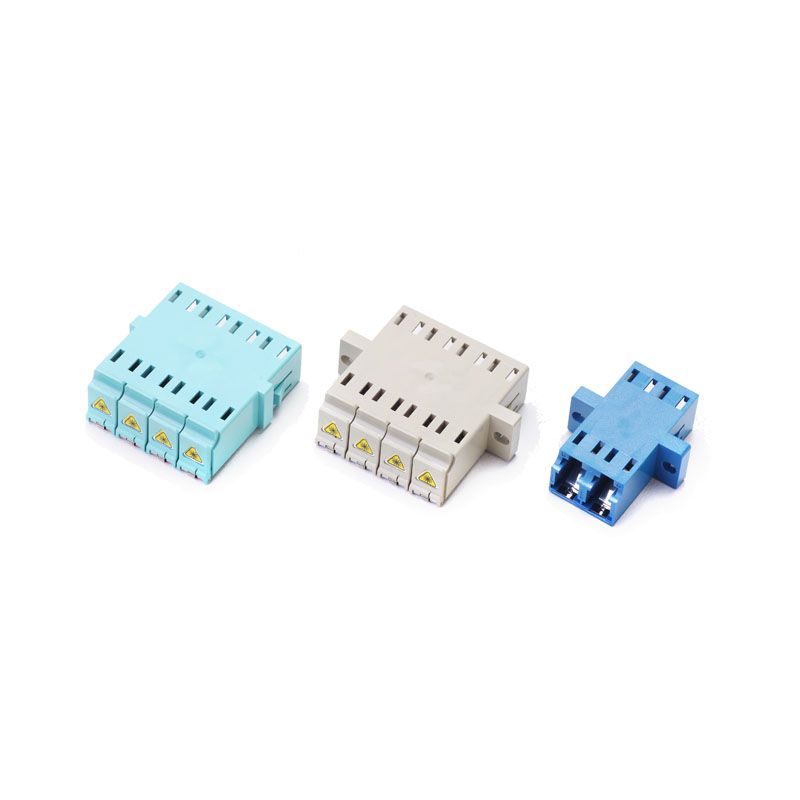

LC Adapter with Shutter
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Gloriole’s LC duplex and quad adapter with SC footprint are available in internal and external shutter to shield potentially harmful light and provide a guard against debris such as dust and dirt.
Detail
Specifications
| Item | LC Adapter With Shutter | |
| Mode | Single | Multi |
| Housing Color | APC=Green,PC=Blue | Beige / Aqua / Magenta |
| Main Body Material | UL-Rated Plastic | |
| Sleeve | Zirconia | |
| Typical Insertion Loss(dB) | ≦ 0.15dB | |
| Durability | < 0.2dB change, 500mating | |
| Operating Temp. | -40℃ ~ +75℃ | |
| Storage Temp. | -40℃ ~ +85℃ | |
Feature
* Unique one-piece design
* Low insertion loss
* Easy installation
* Diversity - Blue, Green, Beige, Aqua. Black and Magenta are available under request
* Internal and external shutter available for dust protection and eye safety
* Telcordia GR-326, IEC and TIA/EIA compliant
