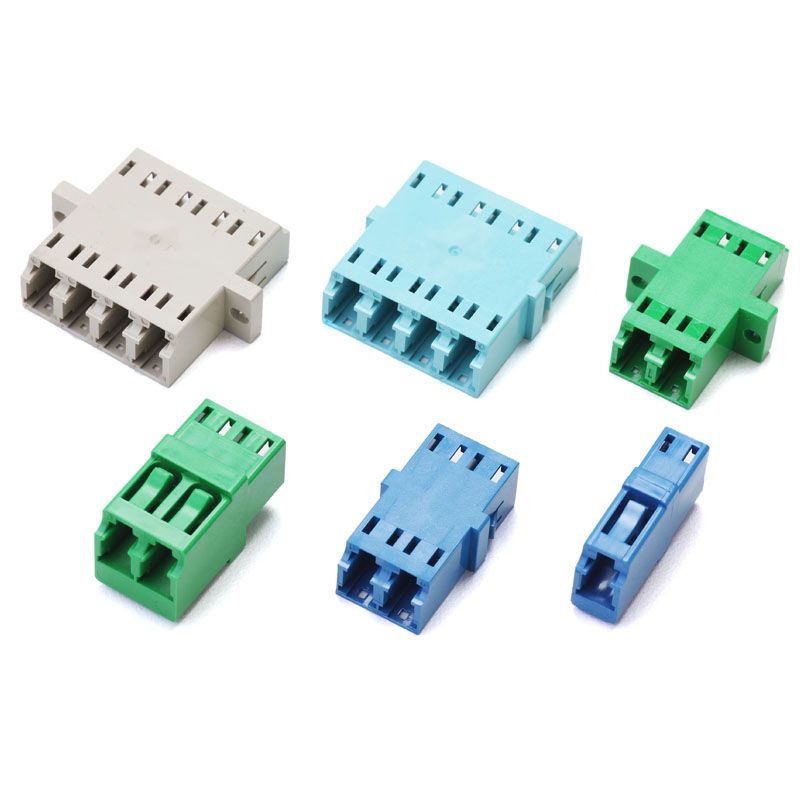

LC Adapter
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Our LC duplex and quad adapter also have SC footprint type.
The LC adapter is available in SM, MM and APC versions.
Detail
Specifications
Gloriole’s LC duplex and quad adapter features one-piece design for more durable.
LC simplex adapter is by ultra-sonic welding.
The LC simplex and duplex adapter with standard type is for RJ-45 interface.
| Item | LC Adapter | |
| Mode | Single | Multi |
| Housing Color | APC=Green,PC=Blue | Beige / Aqua / Magenta |
| Main Body Material | UL-Rated Plastic | |
| Sleeve | Zirconia | |
| Typical Insertion Loss(dB) | ≦ 0.15dB | |
| Durability | < 0.2dB change, 500mating | |
| Operating Temp. | -40℃ ~ +75℃ | |
| Storage Temp. | -40℃ ~ +85℃ | |
Feature
* Unique one-piece design
* Low insertion loss
* Easy installation
* Diversity - Blue, Green, Beige, Aqua. Black and Magenta are available under request
* Internal and external shutter available for dust protection and eye safety
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
