Micro LC Connector
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Gloriole’s micro LC connector features shorter length that provides space saving in the network and FTTH application.
Detail
Specifications
LC is Small Form Factor (SFF) for half the size of SC connector.

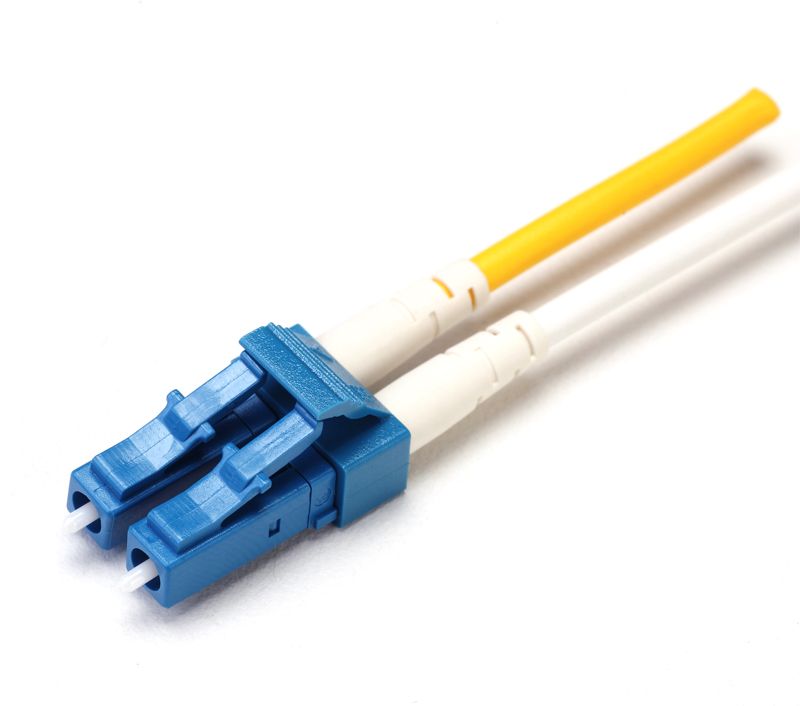

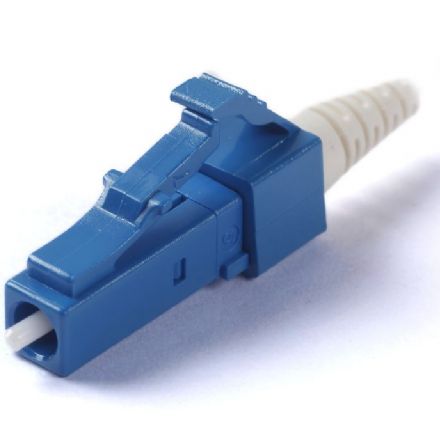

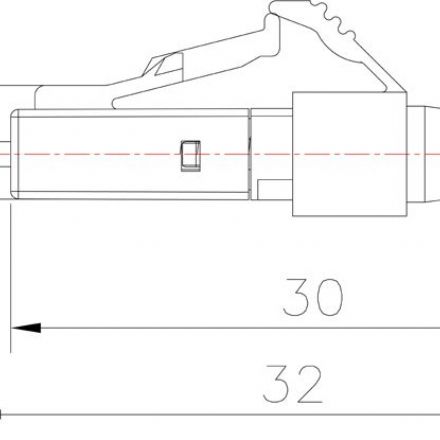

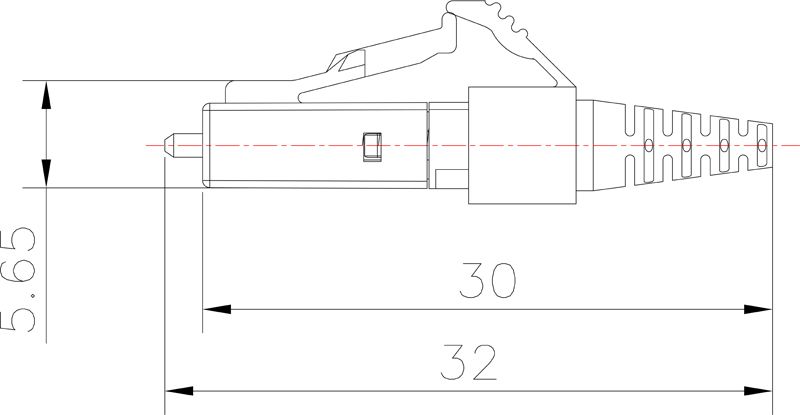

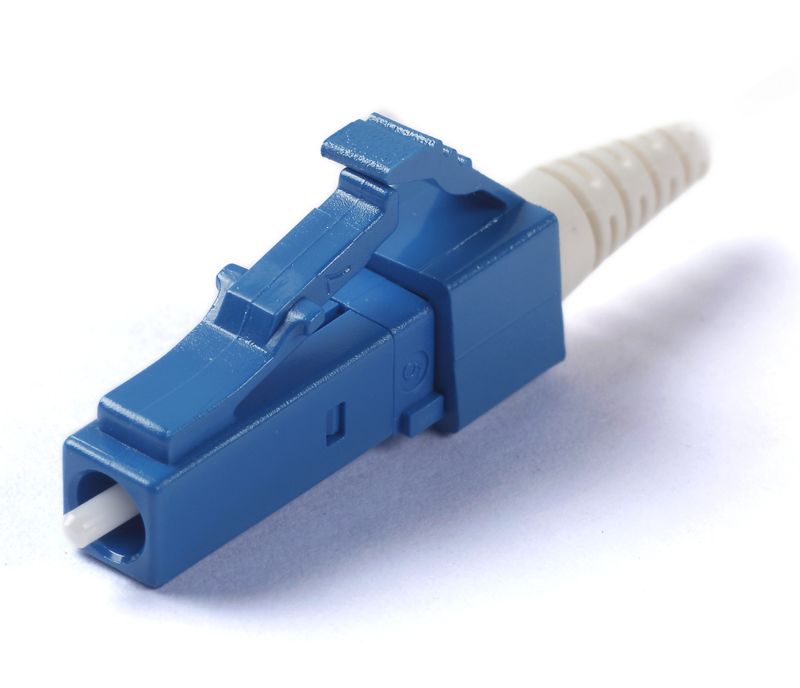

The micro LC connector is available in 0.9mm, 2.0mm, 3.0mm and simplex, duplex for SM (PC & APC) and MM.
| Item | Micro LC Connector | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
* Micro LC Connector Pitch at 6.25mm (Available in Simplex and Duplex)

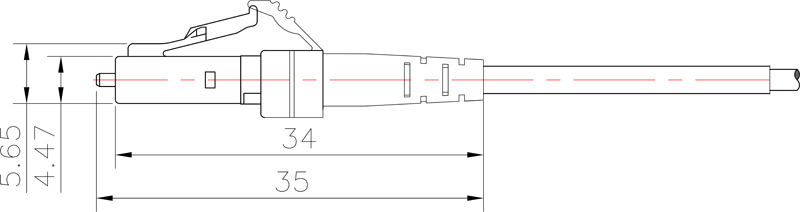

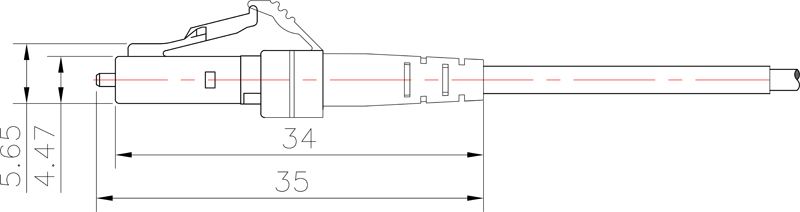

* 36mm in length from ferrule tip to boot end
* Provides space saving in the network and FTTH application
