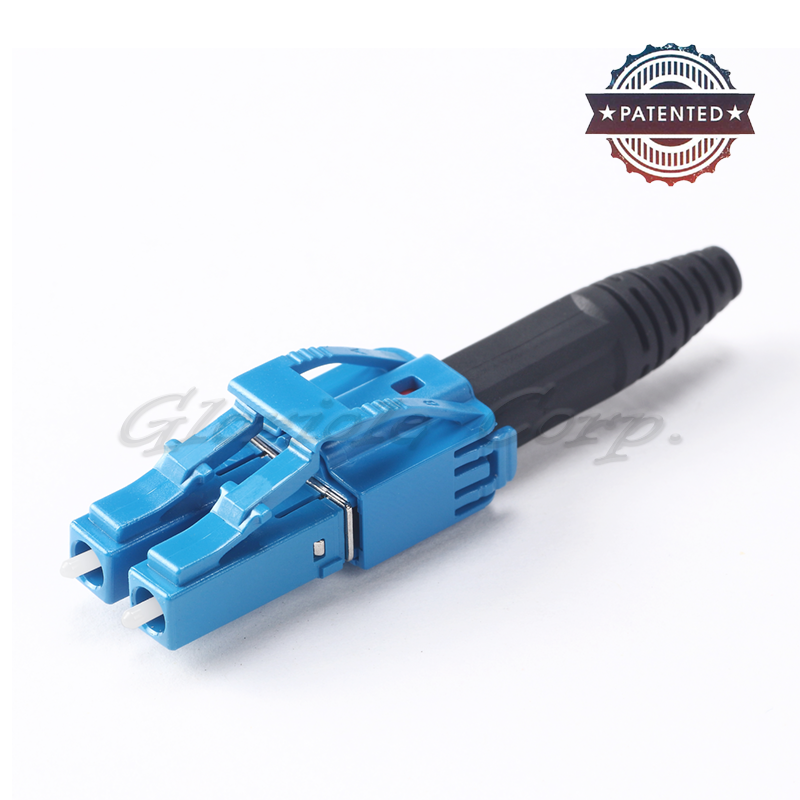

LCX Connector
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
LC is Small Form Factor (SFF) for half the size of SC connector.

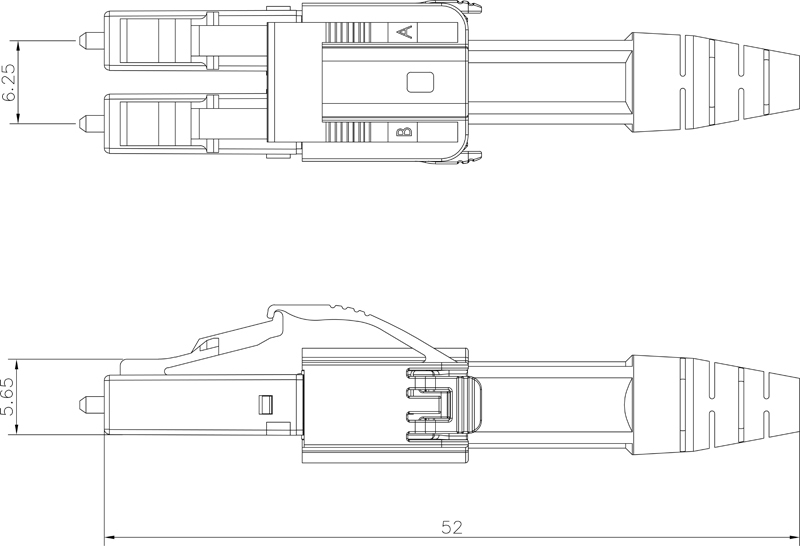

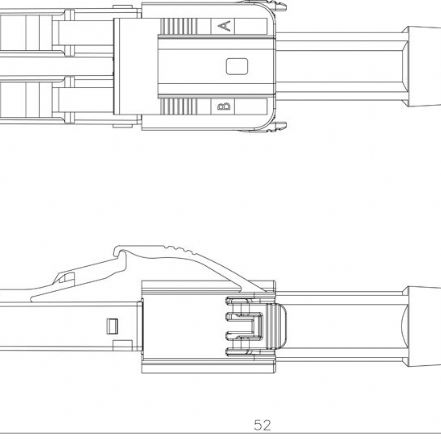

Gloriole’s LCX connector can reverse the connector easily without tolls to exchange the polarity A to B / B to A. LCX connector can be assembled as the pitch of standard 6.25mm or mini 5.25mm without tools or additional parts.
Gloriole’s LCX connector features uniboot design that can decrease the amount of cables in half and is suitable for in data centers where cable counts are high and space limited.
Detail
Specifications
LCX connector is used in, 2.0mm, 3.0mm duplex round cable and available in SM (PC & APC), MM.
LCX connector benefits push-pull tab to un-plug from adapter on high dense.
| Item | LCX Connector | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
* Patented product
* Easy to change connector polarity without any tool
* Versatility: pitch change between 6.25mm and 5.25mm
* Easy to un-plug from adapter on high dense board with push-pull tab
* Uniboot design to decrease cable 50% volume, suitable for data centers application
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
