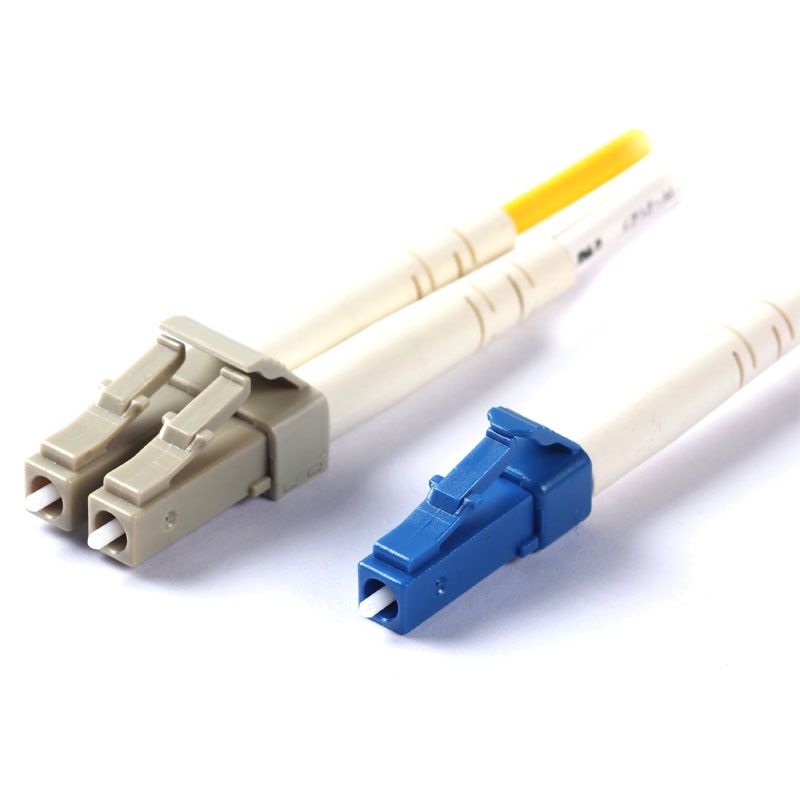

LC Unibody Connector
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Gloriole’s LC Unibody connector features one-piece design for more durable.
Gloriole’s LC Unibody connector can be removed easily from LC adapter by using LC pull-push tab.
Detail
Specifications
LC is Small Form Factor (SFF) for half the size of SC connector.

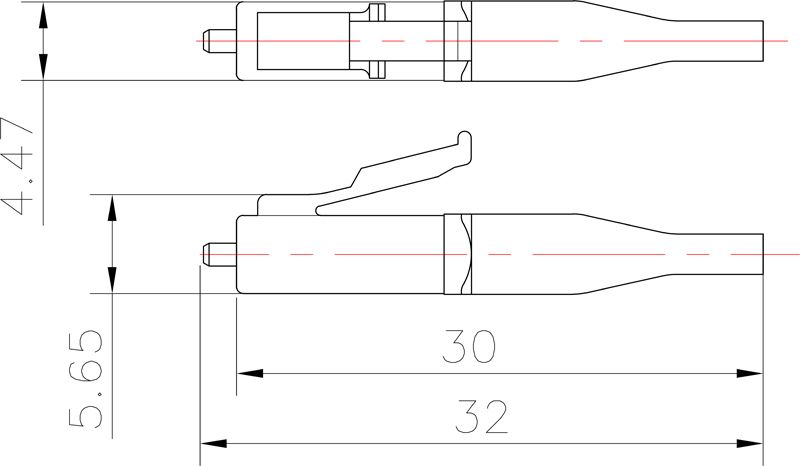

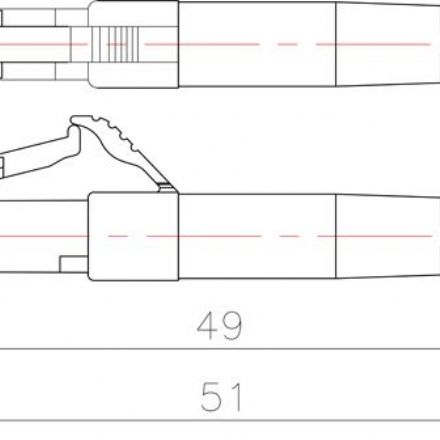

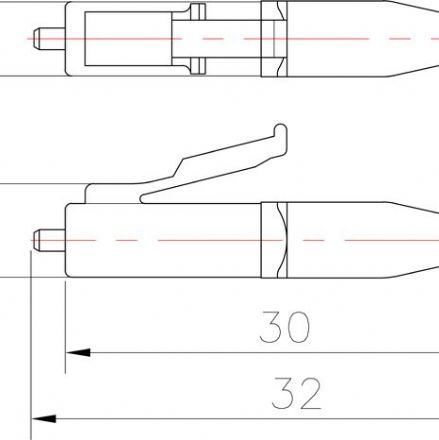

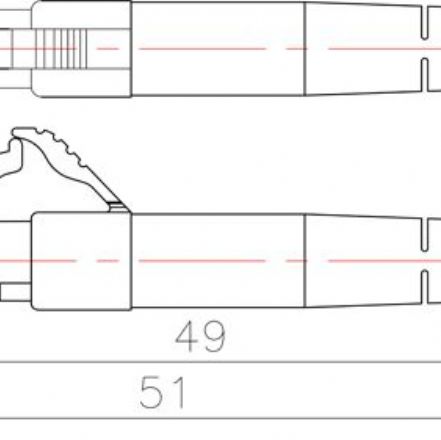

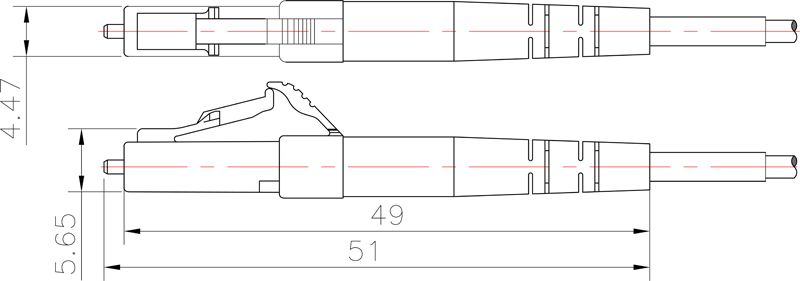

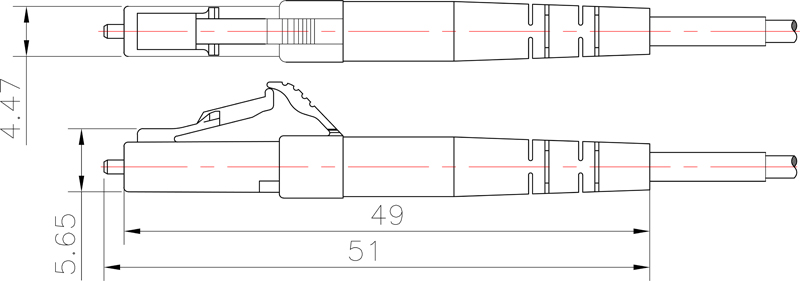

Our LC Unibody connector is available in 0.9mm, 2.0mm, 3.0mm and simplex, duplex for SM (PC & APC) and MM.
LC pull-push tab is available in LC standard Connector and LC Unibody connector.
| Item | LC Unibody Connector | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
* Unique one-piece design
* Low Insertion Loss: 6 direction tuning feature to improve random mating IL
* Small Form Factor (SFF) connector
* Anti-snag latch for jumper
* Available for 0.9mm, 2.0mm, 3.0mm, simplex and duplex
* Angled boots available for 45 degree, 90 degree and flexible boot
* LC patchcord can be plugged in and removed easily from LC adapter by using push-pull tab
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
