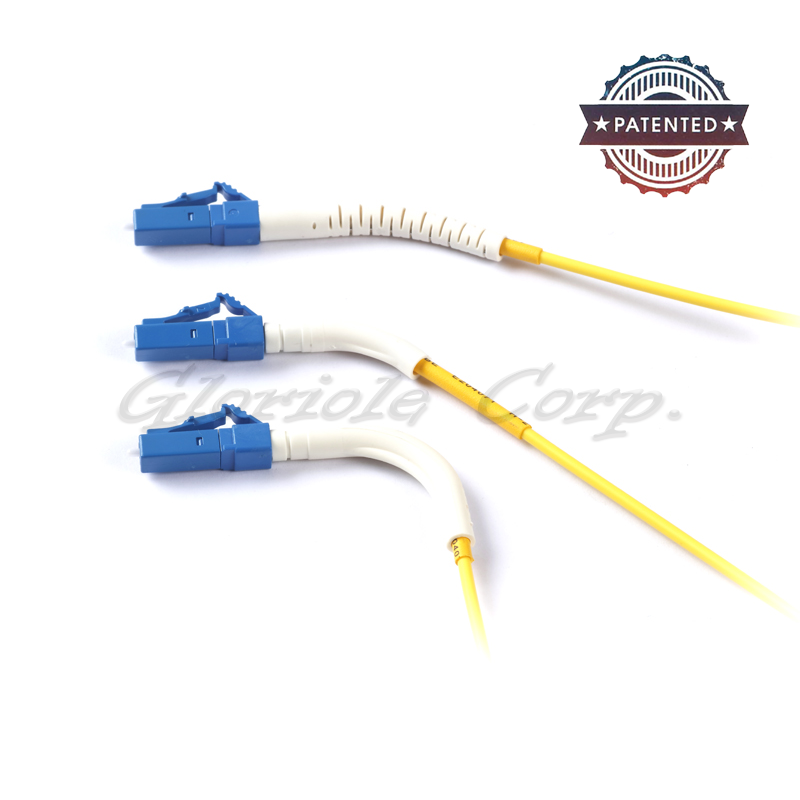

LC Connector with Angled Boot
Gloriole is one of LC licensees to manufacture LC standard connector, LC Unibody connector and LC adapter.
Gloriole’s LC standard and Unibody connector have multiple boots for option.

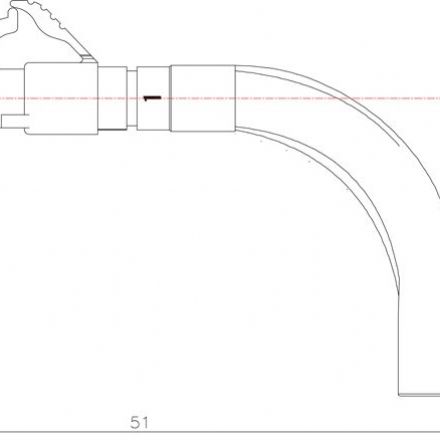

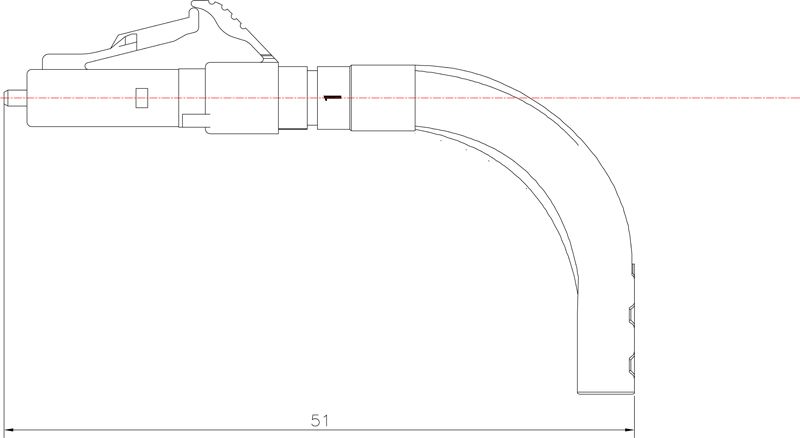

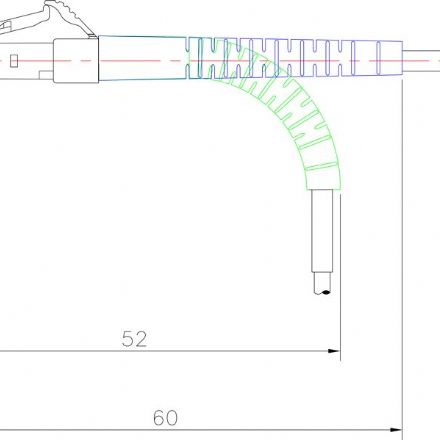

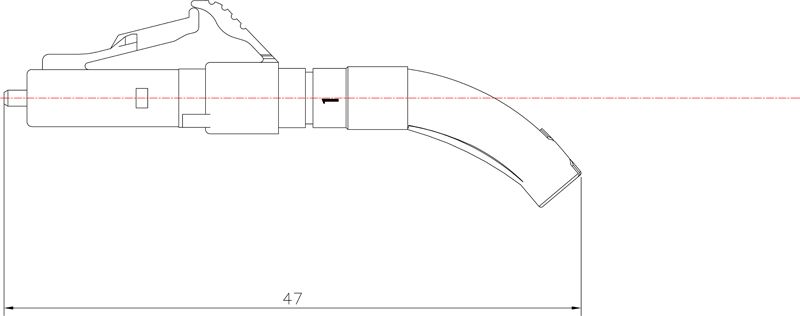

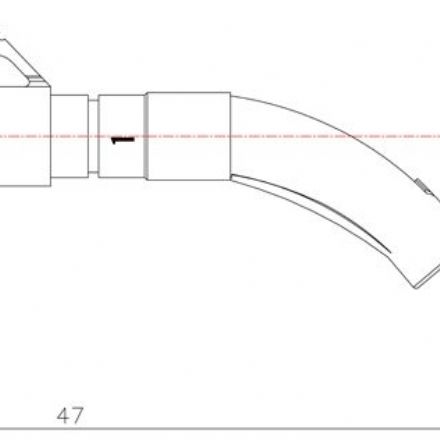

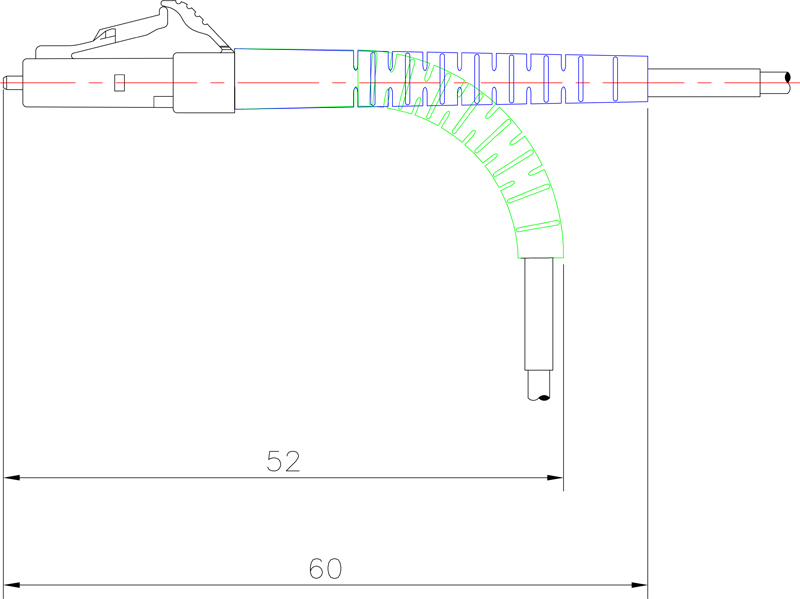

They are available in 45-degree, 90-degree and flexible boot.
Detail
Specifications
| Item | LC Connector (0.9mm,2.0mm,3.0mm) | |||
| Mode | Single | Multi | ||
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um | ||
| Insertion Loss | Premier Gride | A Grade | Premier Gride | A Grade |
| ≦ 0.15dB | ≦ 0.30dB | ≦ 0.15dB | ≦ 0.3dB | |
| Return Loss | PC ≧ 50dB | X | ||
| UPC ≧ 55dB | ||||
| APC ≧ 65dB | ||||
| Operating Temp. (℃) | -40℃ ~ +75℃ | |||
| Storage Temp. (℃) | -40℃ ~ +85℃ | |||
Feature
* Small Form Factor (SFF) connector
* Simplex and Duplex for option
* SM/PC, SM/APC and MM/PC versions
* 900μm, 2.0mm and 3.0mm versions
* Multiple boot color for option
* Available for 45-degree, 90-degree and flexible boot
* Telcordia GR-326-CORE, IEC and TIA/EIA compliant
