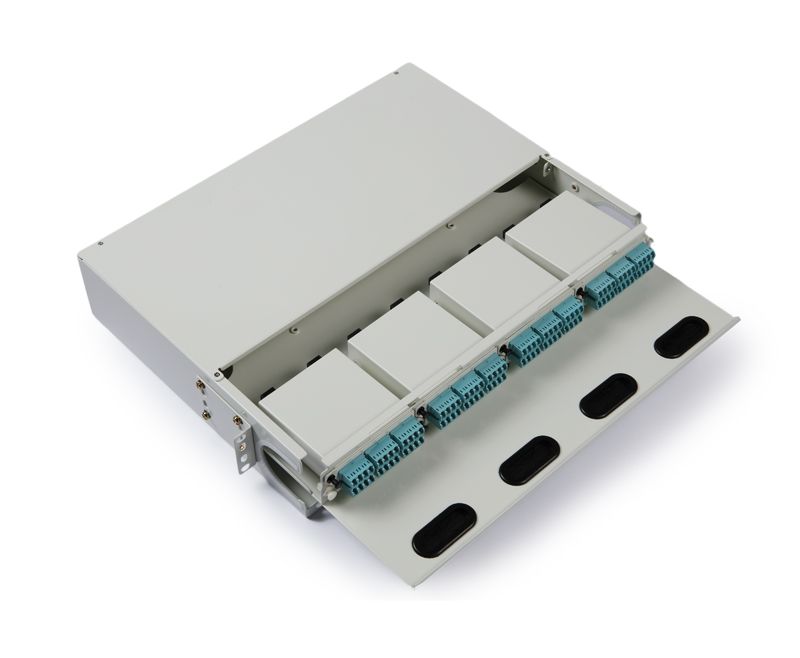

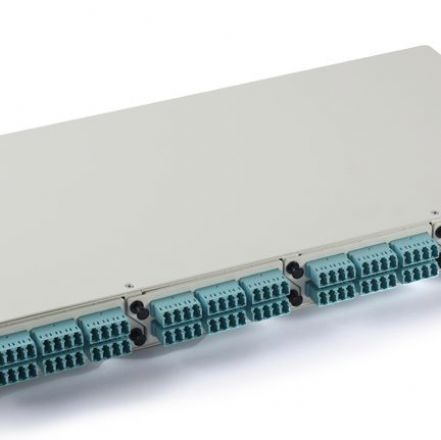

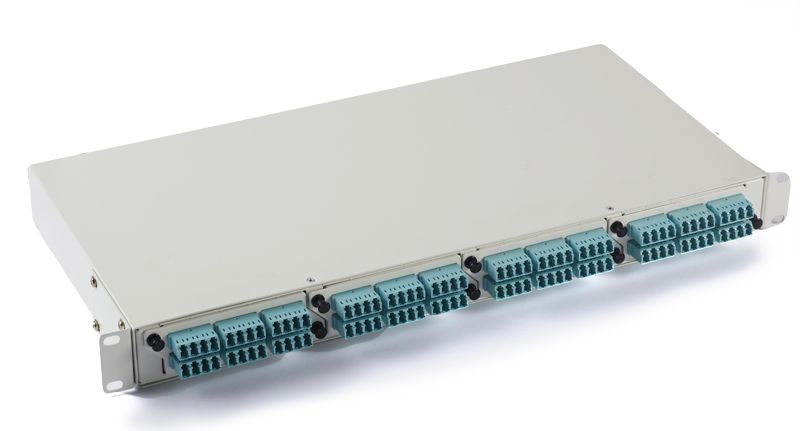

MPO-LC 19 Inch Rack Mount
MPO-LC LGX cassettes can be mounted in 19” rack mount.
Gloriole’s 19” rack mount is designed in 4 slots more than standard 3 slots.
We can install more cassettes for high counts.
Detail
Specifications
| Item | MPO-LC 19 Inch Rack Mount | |||
| Connector Type | MPO | LC | ||
| End Face Type | SM APC | MM PC | SM UPC | MM PC |
| Insertion Loss | ≦ 0.75dB | ≦ 0.6dB | ≦ 0.3dB | ≦ 0.3dB |
| Low Insertion Loss | ≦ 0.35dB | ≦ 0.35dB | ≦ 0.2dB | ≦ 0.2dB |
| Return Loss | ≧ 55dB | ≧ 20dB | ≧ 55dB | ≧ 20dB |
Feature
* High-density and small design
* Easy and fast installation
* Plug-and-Play function
* Field connections with guaranteed quality and simplified fiber routing
* Modular system management, easy reconfiguration for upgrading and changing
* Customized fiber polarity
* 100% in-house tested
