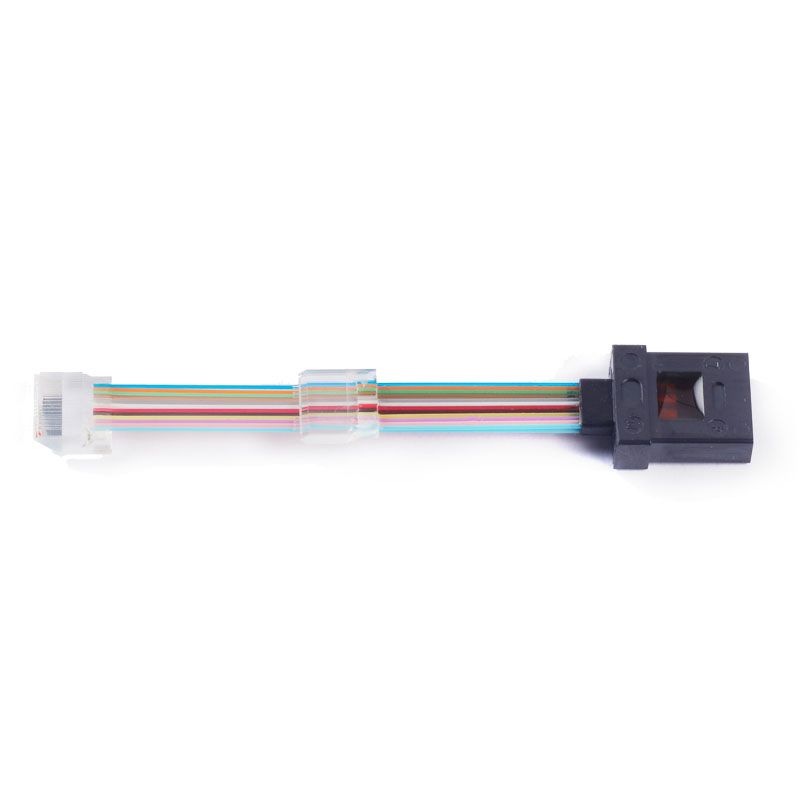

MT- Fiber Array Assembly
This product can be used inside of an optical device package as light output /input which has MPO connector to system board instead of using long fiber and rubber boots outside the device. Therefore it can reduce the package size and fiber routing space.
Detail
Specifications
Fiber array is assembled with MPO, used for next generation pluggable modules which requires ultra-small form factor in the system design.
The product contains fiber array at one end of fiber ribbon and MPO connector on the other end.
The fiber array and MPO can be 2/4/8/16/32/64 channels.
The fiber length is 15mm. (variable to customer requirement).
| Item | Fiber Array | ||||||
| Number of Channels | 1ch | 2ch | 4ch | 8ch | 16ch | 32ch | 64ch |
| Material | Pyrex or Quartz or Silicon | ||||||
| Pitch(um) | 127 or 250(0.5) | ||||||
| Polish Angle(°) | 8 (± 0.3) | ||||||
| Insertion Loss(dB) | 0.15 | ||||||
| Uniformity(dB) | 0.1 | ||||||
| PDL(dB) | 0.05 | ||||||
| Return Loss(dB) | > 55 | ||||||
| Channel Spacing(um) | 250 | 127 | |||||
| Package(mm) | 8x2.5x2.5 | 9.5x2.5x2.5 | 11.5x3.0x2.5 | 11.5x5.7x2.5 | 12x9.8x2.5 | ||
Feature
* From Single Channel to 64Channels
* High Precise Fiber Core-to-Core Accuracy High Precise Polishing Angle
* Low Insertion Loss and High Reliability
* Telcordia GR-1209 & GR-1221-CORE Compliant
* RoHS Compliant
