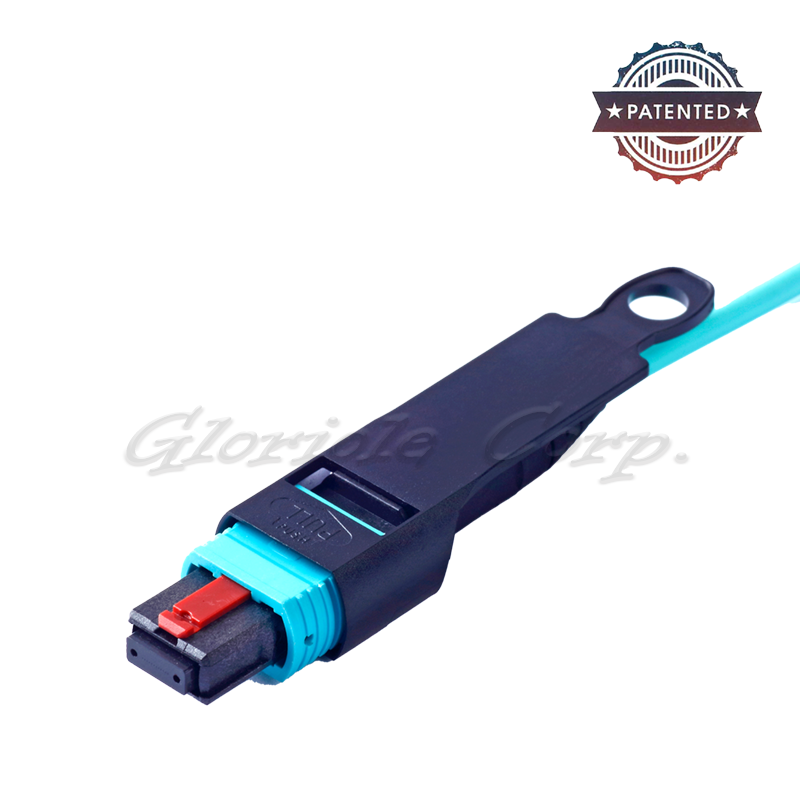

MTX Connector with Push-Pull Tab
Gloriole’s MTX connector is an unique design for high density applications.
It’s polarity can be changed without opening the housing or using any special tool.
In the high dense situation, Gloriole’s MTX connector can be plugged and unplugged from adapter by using push-pull tab.
Detail
Specifications
| Item | MPO Connector (4F, 8F, 12F, 16F, 24F, 32F, 48F) | |
| Mode | Single | Multi |
| Durability (50 matings) | < 0.3dB | |
| Fiber Diameter | 9/125um | 50/125um & 62.5/125um |
| Insertion Loss (Typical) | Standard loss 0.25dB | Standard loss 0.2dB |
| Low Loss 0.1dB | Low Loss 0.1dB | |
| Insertion Loss (Maximum) | Standard loss ≦ 0.75dB | Standard loss ≦ 0.6dB |
| Low Loss ≦ 0.35dB | Low Loss ≦ 0.35dB | |
| Return Loss | APC ≧ 55dB | None |
| Operating Temp. (℃) | -40℃ ~ +75℃ | |
| Storage Temp. (℃) | -40℃ ~ +85℃ | |
Feature
* Patented product
* MTX Connector is an unique design by GET; Its POLARITY can be changed without opening the housing or using any special tool
* Available for 4, 8, 12, 16, 24, 32F and up
* RoHS and Reach Compliant
* IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP® interfaces
* Telcordia GR-1435-CORE Compliant
